8880 Series

Catalog

FAN AXIAL 76X37MM 230VAC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension	Operating Temperature [Min]	Operating Temperature [Max]	RPM	Approval Agency	Voltage - Rated	Width [x]	Power (Watts)	Termination	Weight	Weight	Bearing Type	Air Flow	Air Flow	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Noise	Width [y]

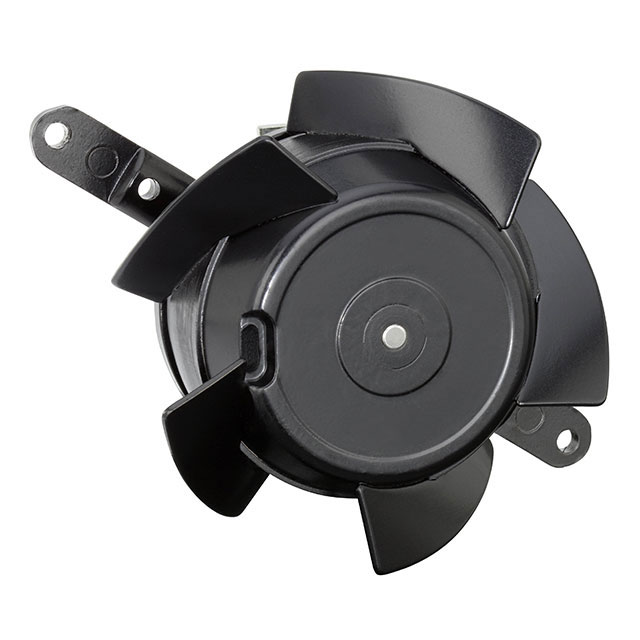

ebm-papst Inc. 8880TV	Metal	Metal	40 °C 60000 Hrs	76 mm	Round	-10 °C	80 °C	1650 RPM	CE CSA UL VDE	230 VAC	37 mm	9 W	2 Wire Leads	370.13 g	0.816 lb	Sintec	14.1 CFM	0.395 m³/min	Tubeaxial

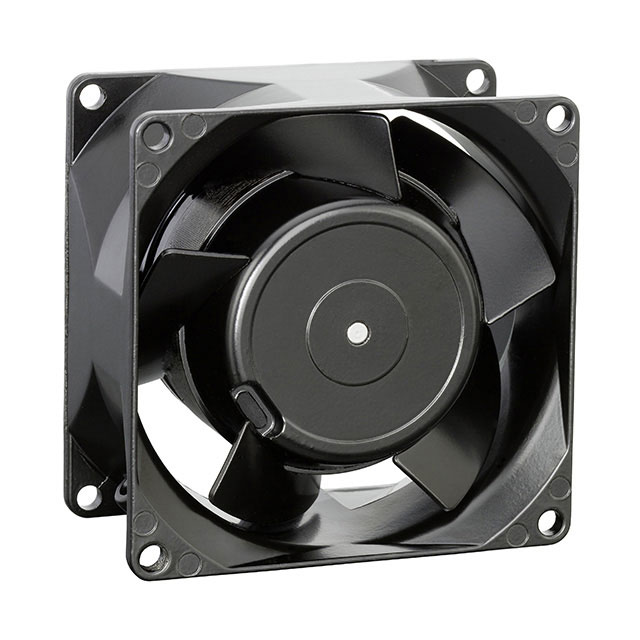

ebm-papst Inc. 8880N	Metal	Metal	40 °C 60000 Hrs			-10 °C	80 °C	1750 RPM	CE CSA UL VDE	230 VAC		9 W	2 Wire Leads	499 g	1.1 lbs	Sintec	17.7 CFM	0.496 m³/min	Tubeaxial	80 mm	80 mm	18 dB(A)	38 mm
ebm-papst Inc. 8880TA	Metal	Metal	40 °C 60000 Hrs	76 mm	Round	-10 °C	80 °C	1650 RPM	CE CSA UL VDE	230 VAC	37 mm	9 W	2 Wire Leads	370.13 g	0.816 lb	Sintec	13.5 CFM	0.378 m³/min	Tubeaxial
