TPSM863253 Series

3V to 17V input voltage, 3.3V, 3A output synchronous buck module in QFN package

Catalog

3V to 17V input voltage, 3.3V, 3A output synchronous buck module in QFN package

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Number of Outputs	Power (Watts)	Package / Case	Voltage - Output 1	Mounting Type	Supplier Device Package	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type

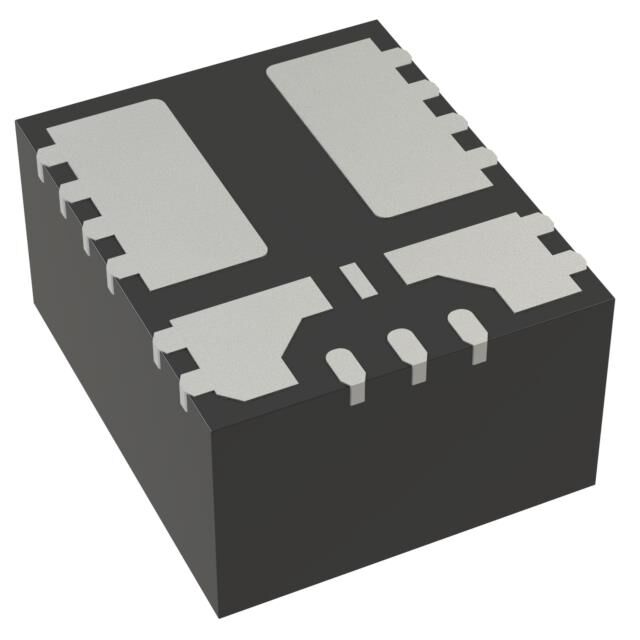

Texas Instruments TPSM863253RDXR	4 mm	0.08 in	0.16 in	2 mm	0.13 in	3.3 mm	17 V	1	10 W	7-PowerFQFN Module	3.3 V	Surface Mount	7-QFN-FCMOD (4x3.3)	ITE (Commercial)	3 V	3 A	125 °C	-40 °C	Non-Isolated PoL Module

Catalog

3V to 17V input voltage, 3.3V, 3A output synchronous buck module in QFN package

Key Features

• Configured for a wide range of applications3V to 17V input voltage range0.6V to 10V output voltage range for TPSM8632520.6V to 5.5V output voltage range for TPSM863257Fixed 3.3V output voltage for TPSM8632530.6V reference voltage±1% reference accuracy at 25°C±1.5% reference accuracy at –40°C to 125°CIntegrated 55mΩ and 24mΩ MOSFETs100µA low quiescent current1.2MHz switching frequencyMaximum 95% large duty cycle operationPrecision EN threshold voltage1.6ms fixed typical soft-start timeEase of use and small design sizeTPSM863252 Eco-mode, TPSM863257 and TPSM863253 FCCM mode at light loadingFast transient D-CAP3™ control modeEasy layout with integrated bootstrap capacitor and inductorSupport start-up with prebiased output voltageNon-latch for OV, OT, and UVLO protectionCycle-by-cycle OC and NOC protection–40°C to 125°C operating junction temperature3.3mm × 4mm × 2mm QFN packageCreate a custom design using the TPSM863252 with theWEBENCH Power DesignerCreate a custom design using the TPSM863253 with theWEBENCH® Power DesignerCreate a custom design using the TPSM863257 with theWEBENCH® Power DesignerConfigured for a wide range of applications3V to 17V input voltage range0.6V to 10V output voltage range for TPSM8632520.6V to 5.5V output voltage range for TPSM863257Fixed 3.3V output voltage for TPSM8632530.6V reference voltage±1% reference accuracy at 25°C±1.5% reference accuracy at –40°C to 125°CIntegrated 55mΩ and 24mΩ MOSFETs100µA low quiescent current1.2MHz switching frequencyMaximum 95% large duty cycle operationPrecision EN threshold voltage1.6ms fixed typical soft-start timeEase of use and small design sizeTPSM863252 Eco-mode, TPSM863257 and TPSM863253 FCCM mode at light loadingFast transient D-CAP3™ control modeEasy layout with integrated bootstrap capacitor and inductorSupport start-up with prebiased output voltageNon-latch for OV, OT, and UVLO protectionCycle-by-cycle OC and NOC protection–40°C to 125°C operating junction temperature3.3mm × 4mm × 2mm QFN packageCreate a custom design using the TPSM863252 with theWEBENCH Power DesignerCreate a custom design using the TPSM863253 with theWEBENCH® Power DesignerCreate a custom design using the TPSM863257 with theWEBENCH® Power Designer

Description

The TPSM86325x is a simple, easy-to-use, high-efficiency, high-power density, synchronous buck module with input voltage ranging from 3V to 17V and supports up to 3A continuous current. The TPSM86325x employs D-CAP3 control mode to provide a fast transient response and to support low-ESR output capacitors with no requirement for external compensation. The device can support up to 95% duty cycle operation. The TPSM863252 operates in Eco-mode, which maintains high efficiency during light loading. The TPSM863257 operates in FCCM mode, which keeps the same frequency and lower output ripple during all load conditions. TPSM863253 is a fixed 3.3V output voltage part with FCCM mode. TPS863253 integrated divider resistors and a feedforward cap in internal module. The device integrates complete protection through OVP, OCP, UVLO, OTP, and UVP with hiccup. The device is available in a QFN package. The junction temperature is specified from –40°C to 125°C. The TPSM86325x is a simple, easy-to-use, high-efficiency, high-power density, synchronous buck module with input voltage ranging from 3V to 17V and supports up to 3A continuous current. The TPSM86325x employs D-CAP3 control mode to provide a fast transient response and to support low-ESR output capacitors with no requirement for external compensation. The device can support up to 95% duty cycle operation. The TPSM863252 operates in Eco-mode, which maintains high efficiency during light loading. The TPSM863257 operates in FCCM mode, which keeps the same frequency and lower output ripple during all load conditions. TPSM863253 is a fixed 3.3V output voltage part with FCCM mode. TPS863253 integrated divider resistors and a feedforward cap in internal module. The device integrates complete protection through OVP, OCP, UVLO, OTP, and UVP with hiccup. The device is available in a QFN package. The junction temperature is specified from –40°C to 125°C.
