27029 Series

Catalog

LED LIGHTING FIXTURES PLD M 260 W-40/80 190/D40

Part	Features	Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	Height [z]	Lens Type	Configuration	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Color	Function - Audible	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Ingress Protection	Number of Stacks	Termination Style

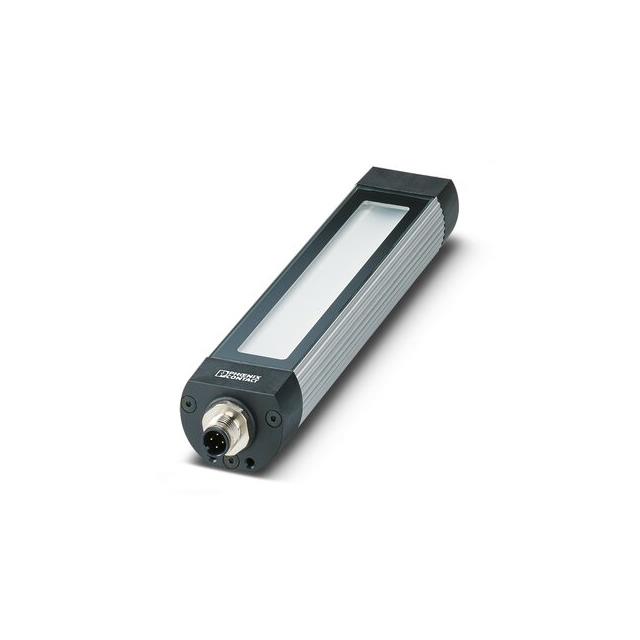

Phoenix Contact 2702938	IP67	LED Module	97 lm/W	80	490 lm	210 mA	40 ° 80 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	190 mm	Cool White
Phoenix Contact 2702942	IP67	LED Module	108 lm/W	80	2330 lm	900 mA	40 ° 80 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	715 mm	Cool White

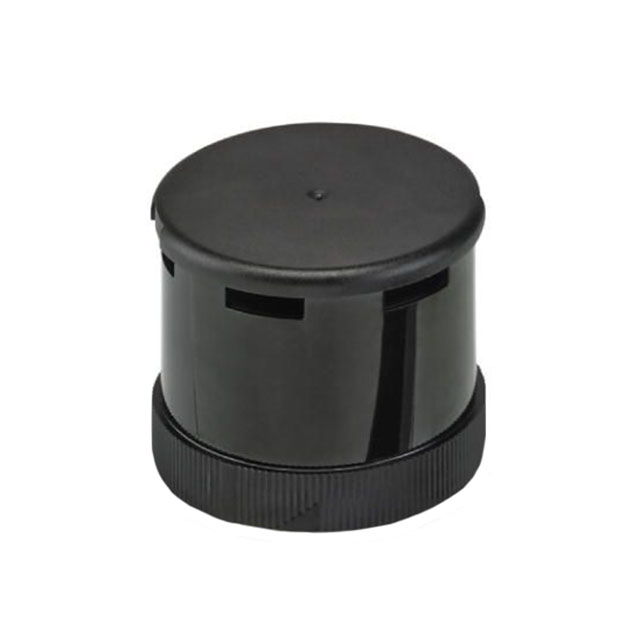

Phoenix Contact 2702998		Acoustic Element														Alternating Continuous	-30 ░C	50 °C	24 VAC	IP65 - Dust Tight Water Resistant	1

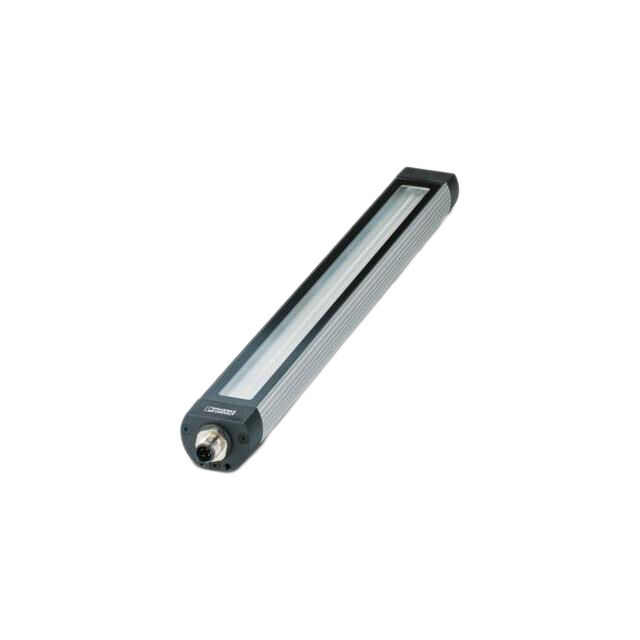

Phoenix Contact 2702934	IP67	LED Module	102 lm/W	80	1080 lm	440 mA	85 ° 95 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	365 mm	Cool White
Phoenix Contact 2702941	IP67	LED Module	107 lm/W	80	1720 lm	670 mA	40 ° 80 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	540 mm	Cool White
Phoenix Contact 2702939	IP67	LED Module	106 lm/W	80	1120 lm	440 mA	40 ° 80 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	365 mm	Cool White

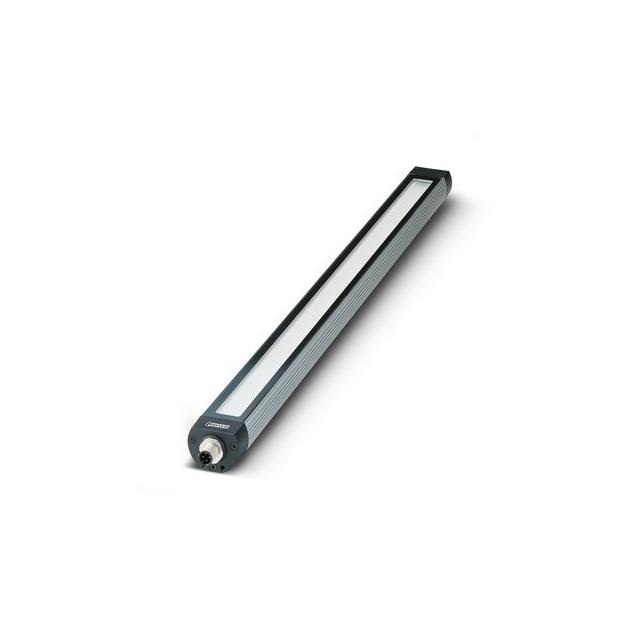

Phoenix Contact 2702935	IP67	LED Module	104 lm/W	80	1680 lm	670 mA	85 ° 95 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	540 mm	Cool White
Phoenix Contact 2702933	IP67	LED Module	95 lm/W	80	480 lm	210 mA	85 ° 95 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	190 mm	Cool White

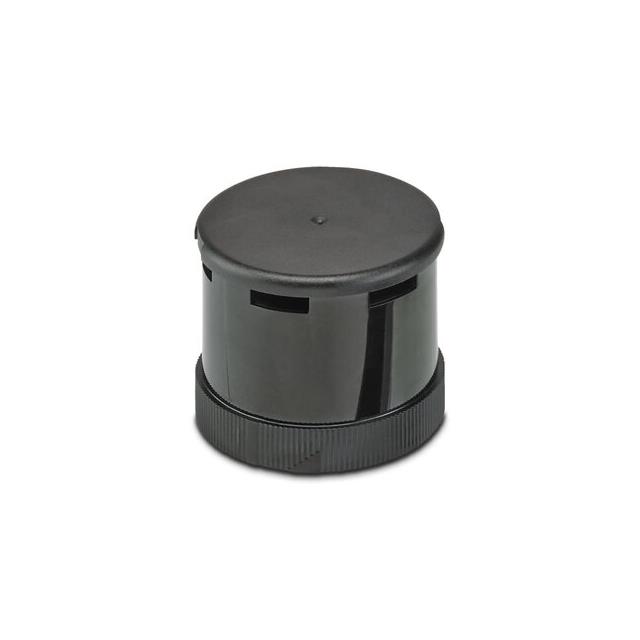

Phoenix Contact 2702997	Adjustable Volume	Acoustic Element														Multiple	-30 ░C	50 °C	24 VAC	IP65 - Dust Tight Water Resistant	1	Screw Terminal
Phoenix Contact 2702936	IP67	LED Module	106 lm/W	80	2280 lm	900 mA	85 ° 95 °	24 V	30 mm	Flat	Rectangle	5000 K	40 mm	715 mm	Cool White
