BR230D-290 Series

Catalog

RELAY GEN PURPOSE 4PDT 10A 28V

Part	Coil Resistance	Coil Voltage	Switching Voltage [Max]	Release Time	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Must Release Voltage	Relay Type	Contact Form	Operate Time	Coil Current	Load - Max Switching	Coil Type	Mounting Type	Contact Rating (Current)
Microsemi Corporation BR230D-290C1-28V-017L	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Plug In	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Socketable	10 A
Microsemi Corporation BR230D-290C2-28V-020L	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Plug In	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
Microsemi Corporation BR230D-290B3-28V-024M	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Solder Hook	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
Microsemi Corporation BR230D-290A2-28V-022M	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Plug In	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
Microsemi Corporation BR230D-290C1-28V	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Plug In	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Socketable	10 A
Microsemi Corporation BR230D-290C2-28V-020M	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Plug In	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A

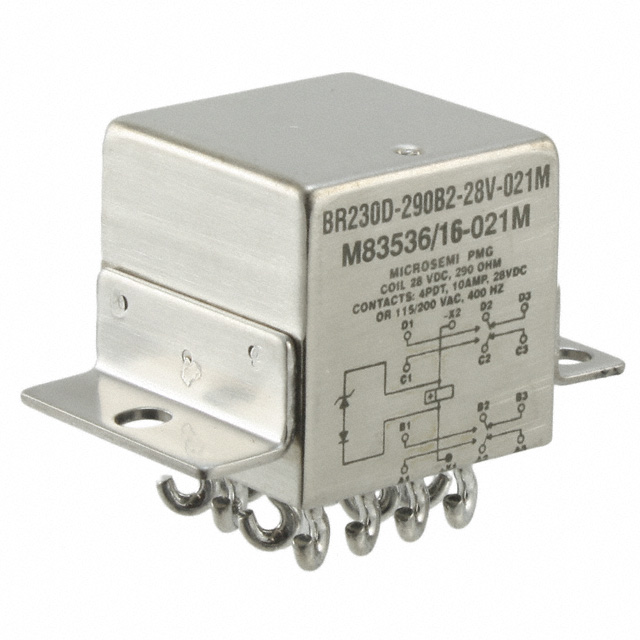

Microsemi Corporation BR230D-290B2-28V-021M	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Solder Hook	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
Microsemi Corporation BR230D-290B3-28V	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Solder Hook	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
Microsemi Corporation BR230D-290B3-28V-024L	290 Ohms	28 VDC	28 VDC 208 VAC	15 ms	Solder Hook	-70 °C	125 °C	18 VDC	5.1 VDC	General Purpose	4PDT (4 Form C)	15 ms	96.6 mA	280 W 2080 VA	Non Latching	Chassis Mount	10 A
