DRV8312 Series
Manufacturer: Texas Instruments
Beta
⌘K

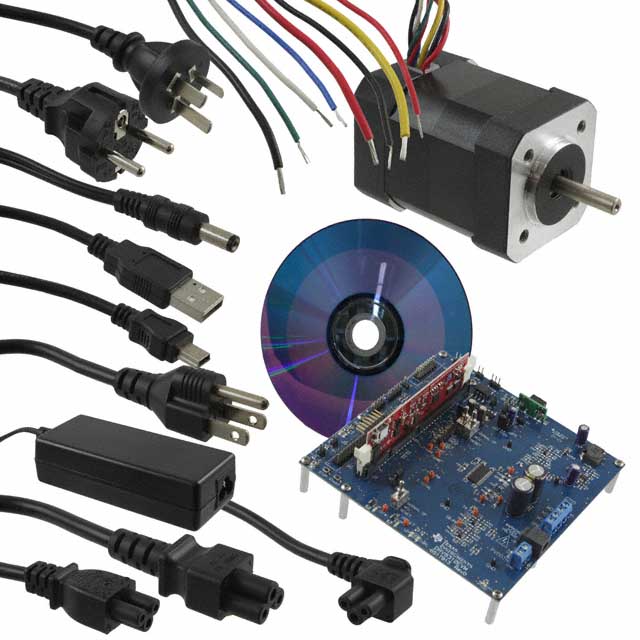

KIT DEV DRV8312-430FR
| Part | Utilized IC / Part | Embedded | Embedded | Primary Attributes | Type | Secondary Attributes | Function | Supplied Contents | Contents | Technology | Applications | Voltage - Load [Max] | Voltage - Load [Min] | Load Type | Package / Case [custom] | Package / Case [custom] | Package / Case | Mounting Type | Current - Output / Channel | Interface | Rds On (Typ) | Voltage - Supply [Max] | Voltage - Supply [Min] | Current - Peak Output | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Fault Protection | Features | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DRV8312 MSP430FR5739 | 16-Bit MCU | 3 Half Bridge Drivers | Power Management | Graphical User Interface (GUI) | Motor Controller/Driver | Accessories Board(s) Cable(s) Power Supply | Accessories Board(s) Cable(s) Power Supply | ||||||||||||||||||||||
 Texas Instruments | Power MOSFET | DC Motors General Purpose | 52.5 V | 0 V | Inductive | 44-PowerTSSOP | 0.244 in | 6.2 mm | Surface Mount | 3.5 A | PWM | 80 mOhm 80 mOhm | 13.2 V | 10.8 VDC | 6.5 A | 44-HTSSOP | 150 °C | -40 °C | Current Limiting Over Temperature Short Circuit UVLO | Bootstrap Circuit Status Flag | Half Bridge (3) | |||||||||
 Texas Instruments | Power MOSFET | DC Motors General Purpose | 52.5 V | 0 V | Inductive | 44-PowerTSSOP | 0.244 in | 6.2 mm | Surface Mount | 3.5 A | PWM | 80 mOhm 80 mOhm | 13.2 V | 10.8 VDC | 6.5 A | 44-HTSSOP | 150 °C | -40 °C | Current Limiting Over Temperature Short Circuit UVLO | Bootstrap Circuit Status Flag | Half Bridge (3) | |||||||||

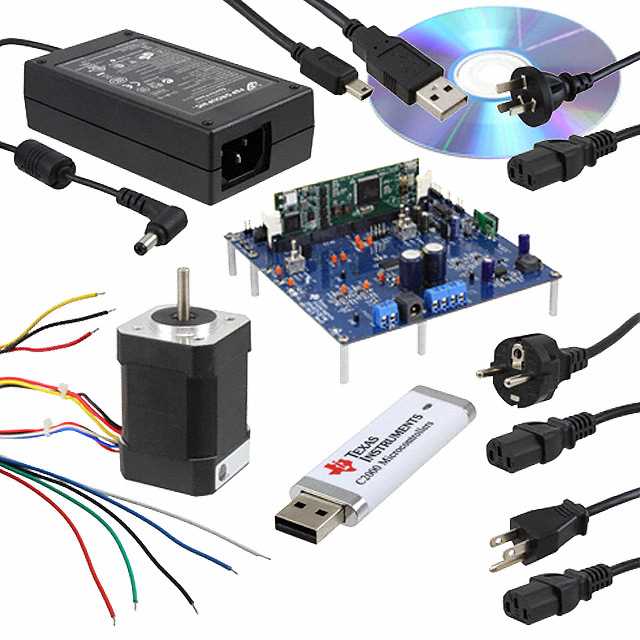

 Texas Instruments | DRV8312 TMS320F28069M | 32-Bit MCU | BLAC BLDC PMSM | Power Management | Graphical User Interface (GUI) | Motor Controller/Driver | Accessories Board(s) Cable(s) Power Supply | Accessories Board(s) Cable(s) Power Supply |
