CJS-1201 Series

Catalog

SLIDE SWITCH, SPDT, ON-ON, SURFACE MOUNT, CJS SERIES, 100 MA

Part	Electrical Life	Actuator Type	Actuator Level	Features	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Circuit	Mounting Type	Contact Finish
Nidec Components Corporation CJS-1201A	200 Cycles	Flush Slide (Standard)	Flush	Tape Seal	J Lead	85 °C	-40 C	100 mA	Copper Alloy	SPDT	Surface Mount	Gold
Nidec Components Corporation CJS-1201B	200 Cycles	Flush Slide (Standard)	Flush	Tape Seal	Gull Wing	85 °C	-40 C	100 mA	Copper Alloy	SPDT	Surface Mount	Gold

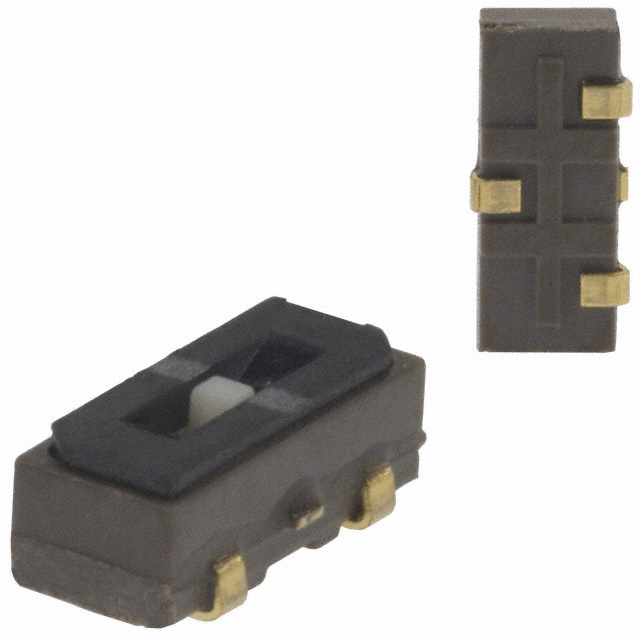

Nidec Components Corporation CJS-1201TA	200 Cycles	Flush	Flush	Tape Seal	J Lead	85 °C	-40 C	100 mA	Copper Alloy	SPDT	Surface Mount	Gold
Nidec Components Corporation CJS-1201A1	200 Cycles	Flush Slide (Standard)	Flush		J Lead	85 °C	-40 C	100 mA	Copper Alloy	SPDT	Surface Mount	Gold

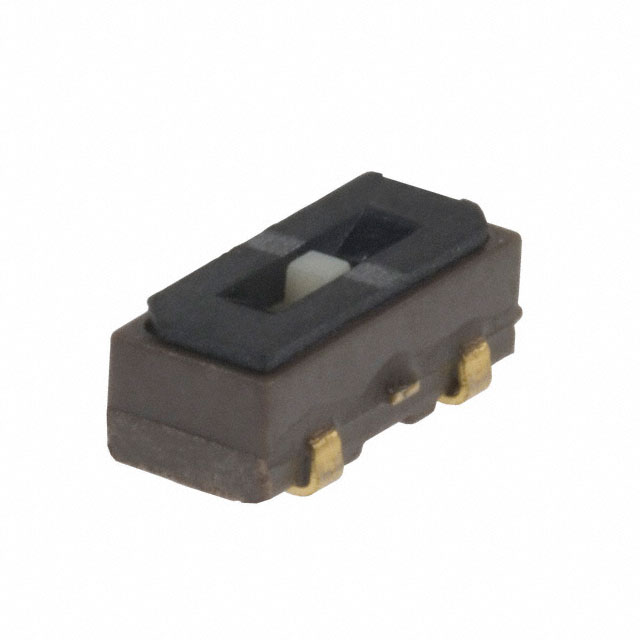

Nidec Components Corporation CJS-1201TA1	200 Cycles	Flush Slide (Standard)	Flush		J Lead	85 °C	-40 C	100 mA	Copper Alloy	SPDT	Surface Mount	Gold
