8466MN Series
Manufacturer: Belden Inc.
Beta
⌘K

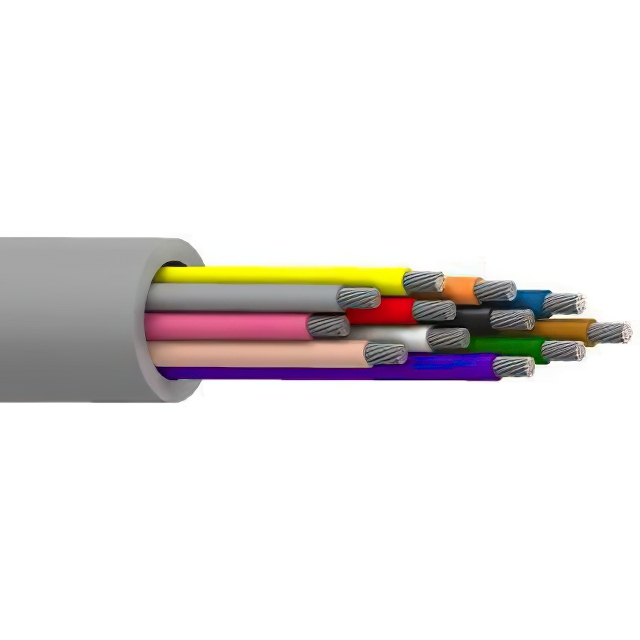

CABLE 12COND 18AWG GRAY
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Usage | Number of Conductors | Conductor Insulation | Length | Length | Conductor Material | Jacket (Insulation) Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 41 | 34 | Gray | Audio Control Instrumentation | 12 | Polypropylene (PP) | 304.8 m | 1000 ft | Copper Tinned | Poly-Vinyl Chloride (PVC) | 18 AWG | 80 °C | -20 ░C | Multi-Conductor | 300 VDC | 0.406 mm | 0.016 in | UL Style 2937 | ||
 Belden Inc. | 41 | 34 | Yellow | Audio Control Instrumentation | 12 | Polypropylene (PP) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 18 AWG | 80 °C | -20 ░C | Multi-Conductor | 300 VDC | 0.406 mm | 0.016 in | UL Style 2937 | 100 ft | 30.5 m | ||
 Belden Inc. | 41 | 34 | Gray | Audio Control Instrumentation | 12 | Polypropylene (PP) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 18 AWG | 80 °C | -20 ░C | Multi-Conductor | 300 VDC | 0.406 mm | 0.016 in | UL Style 2937 | 100 ft | 30.5 m |
