83504 Series
Manufacturer: Belden Inc.
Beta
⌘K

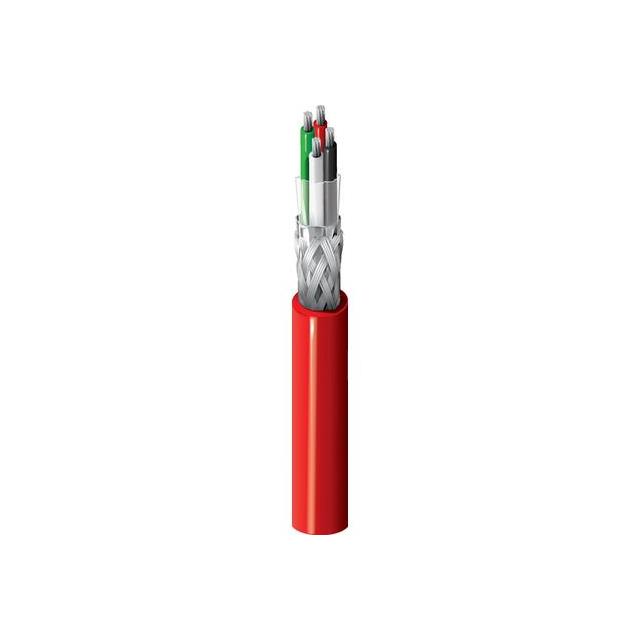

CABLE 4COND 24AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Wire Gauge | Conductor Insulation | Voltage | Usage | Cable Type | Length [x] | Length [x] | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 7 | 32 AWG | -70 °C | 200 °C | Red | 24 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Audio Control Instrumentation | Multi-Conductor | 100 ft | 30.5 m | Fluorinated Ethylene-Propylene (FEP) Plenum | Copper Tinned | 4 | UL Style CMP | 0.014 in | 0.356 mm | Braid Foil | 0.144 in | 3.66 mm | ||
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 7 | 32 AWG | -70 °C | 200 °C | Red | 24 AWG | Fluorinated Ethylene-Propylene (FEP) | 300 VDC | Audio Control Instrumentation | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) Plenum | Copper Tinned | 4 | UL Style CMP | 0.014 in | 0.356 mm | Braid Foil | 0.144 in | 3.66 mm | 152.4 m | 500 ft |
