S11M08-P Series

Manufacturer: ODU

Catalog

ODU MEDI-SNAP PLUG, STY 1, SZ 1,

Part	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Connector Type	Mounting Type	Shielding	Shell Size - Insert	Fastening Type	Primary Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Ingress Protection	Features	Applications	Insert Material	Cable Opening	Cable Opening [Max]	Cable Opening [Min]	Contact Finish - Mating	Backshell Material, Plating	Number of Positions	Color	Cable Opening [Max]	Cable Opening [Min]	Termination	Cable Opening [Max]
ODU S11M08-P02MPH0-5260	48 VDC	UL94 V-0	12 Amps	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)	4 mm 5.2 mm	0.205 in	0.157 in	Gold	Polysulfone (PSU)	2	Black Blue
ODU S11M08-P02MPH0-6580	48 VDC	UL94 V-0	12 Amps	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)		0.256 in	0.209 in	Gold	Polysulfone (PSU)	2	Black	6.5 mm	5.3 mm
ODU S11M08-P05PJH0-6580	25 V	UL94 V-0	10 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)		0.256 in	0.209 in	Gold	Polysulfone (PSU)	5	Black	6.5 mm	5.3 mm	Crimp
ODU S11M08-P10MCC0-5280	25 V	UL94 V-0	4 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)	4 mm 5.2 mm	0.205 in	0.157 in	Gold	Polysulfone (PSU)	10	Black
ODU S11M08-P04MJG0-5220	48 VDC	UL94 V-0	7.5 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)	4 mm 5.2 mm	0.205 in	0.157 in	Gold	Polysulfone (PSU)	4	Black Red

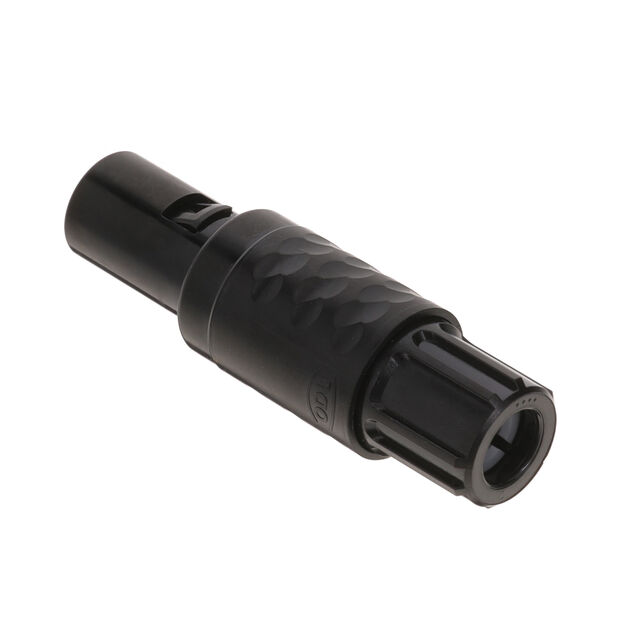

ODU S11M08-P04MJG0-5280			7.5 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C		IP50 - Dust Protected				4 mm 5.2 mm	0.205 in	0.157 in	Gold		4	Black
ODU S11M08-P07MFD0-5280	36 VDC	UL94 V-0	6 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)	4 mm 5.2 mm	0.205 in	0.157 in	Gold	Polysulfone (PSU)	7	Black
ODU S11M08-P04MJG0-3960	48 VDC	UL94 V-0	7.5 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)		0.154 in	0.106 in	Gold	Polysulfone (PSU)	4	Black Blue		2.7 mm		3.9 mm
ODU S11M08-P08MFD0-3950	32 V	UL94 V-0	6 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)		0.154 in	0.106 in	Gold	Polysulfone (PSU)	8	Black Green		2.7 mm		3.9 mm
ODU S11M08-P03LJN0-6560	230 V	UL94 V-0	10 A	Plug Male Pins	Free Hanging (In-Line)	Unshielded	1	Push-Pull	Plastic	Polysulfone (PSU)	120 °C	-50 °C	Brass	IP50 - Dust Protected	Backshell	Industrial Medical Testing Equipment & Measurement	Polyetheretherketone (PEEK)		0.256 in	0.209 in	Gold	Polysulfone (PSU)		Black Blue	6.5 mm	5.3 mm
