XM2F Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

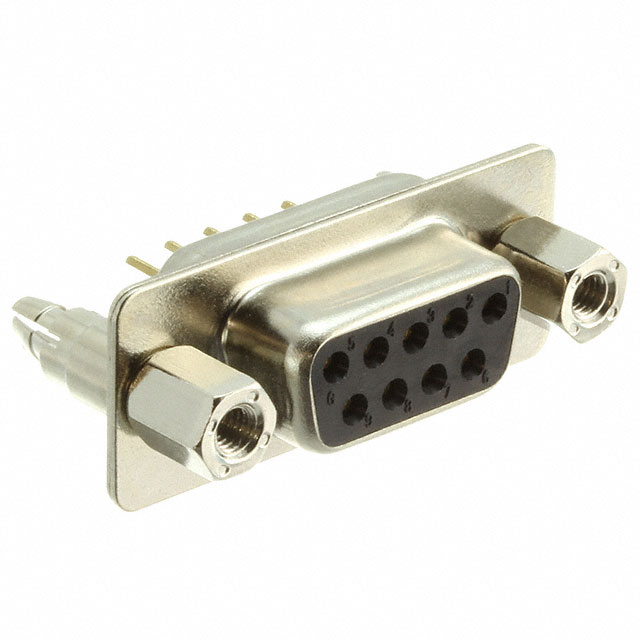

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Material | Color | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Shell Material, Finish | Features | Mounting Type | Current Rating (Amps) | Connector Type | Contact Type | Contact Finish | Termination | Contact Finish Thickness | Number of Rows [custom] | Number of Positions | Shell Size, Connector Layout | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | 300 VDC | Phosphor Bronze | Black | UL94 V-0 | 1 | DE E | D-Sub | Nickel Plated Steel | Board Lock Shielded | Through Hole | 3 A | Receptacle Female Sockets | Signal | Gold | Solder | Flash | 2 | 9 | ||
 Omron Electronics Inc-EMC Div | Polybutylene Terephthalate (PBT) Glass Filled | 105 ░C | -25 °C | 300 VDC | Phosphor Bronze | Black | UL94 V-0 | D-Sub | Nickel Plated Steel | Board Lock Shielded | Through Hole | 3 A | Receptacle Female Sockets | Signal | Gold | Solder | Flash | 2 | 15 | 2 | 4-40 Mating Side Female Screwlock |
