ML30 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 5V 30W

Part	Current - Output (Max)	Features	Input Type	Operating Temperature [Max]	Efficiency	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Power (Watts)	Approval Agency	Number of Outputs	Standard Number	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Voltage - Isolation
PULS, LP ML30.101	5 A	Adjustable Output Load Sharing Universal Input	AC	70 °C	80 %	264 VAC	85 VAC	5 V	30 Watts	ABS CSA DNV GL EAC IEC NEC UL	1	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm

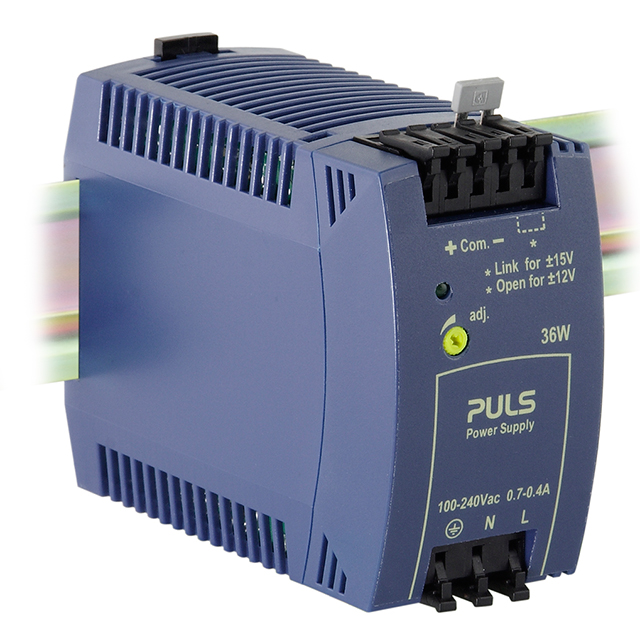

PULS, LP ML30.106		Adjustable Output Load Sharing Universal Input	AC	70 °C	86 %	264 VAC	85 VAC	12 V	36 W	ABS DNV GL EAC IEC NEC UL	2	508 60950-1 61010-2-201 Class 2	ITE (Commercial)	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm	-12 V	1.4 A	2.8 A

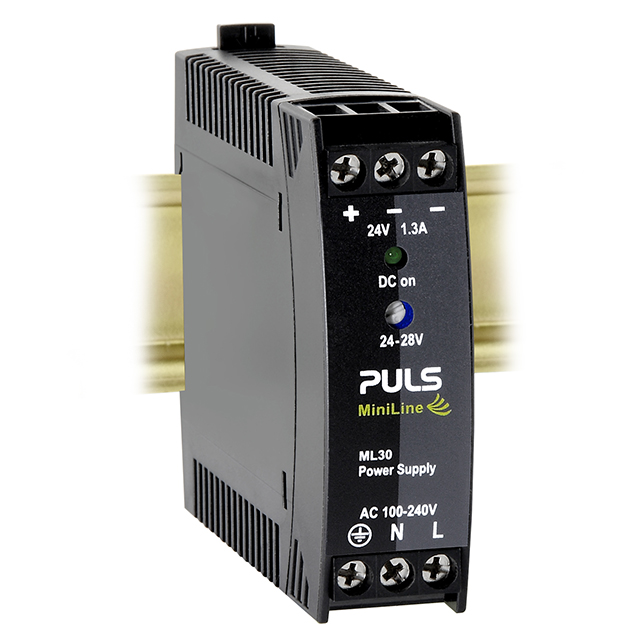

PULS, LP ML30.241		Adjustable Output Load Sharing Universal Input	AC	70 °C	89.4 %	264 VAC	85 VAC	24 V	30 Watts	ABS CSA DNV GL EAC IEC NEC UL	1	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm			1.3 A	500 V

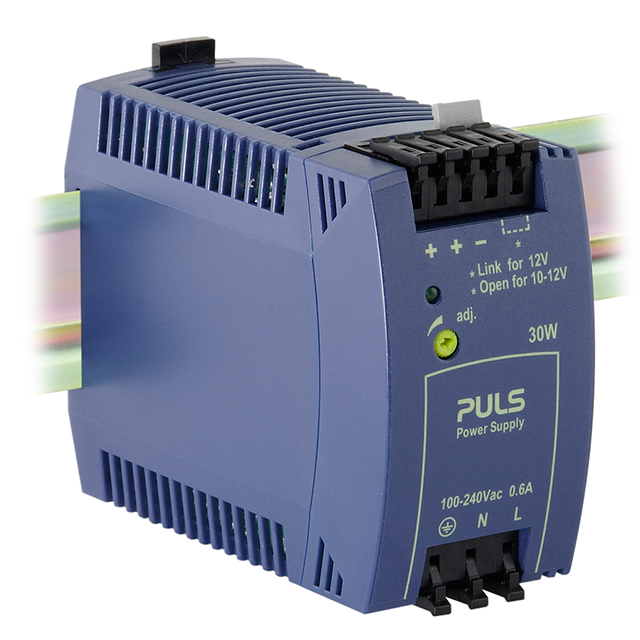

PULS, LP ML30.102		Adjustable Output Load Sharing Universal Input	AC	70 °C	84 %	264 VAC	85 VAC	12 V	30 Watts	CSA EAC IEC NEC UL	1	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm			3 A

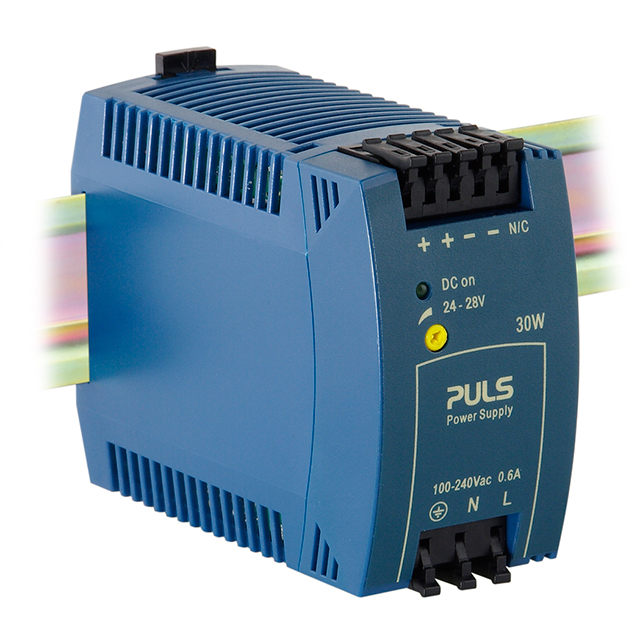

PULS, LP ML30.100		Adjustable Output Load Sharing Universal Input	AC	70 °C	87.5 %	264 VAC	85 VAC	24 V	30 Watts	ABS CSA DNV GL EAC IEC NEC UL	1	508 60950-1 61010-2-201 Class 2 Class I Div 2	ITE (Commercial)	3.58 in	45 mm	1.77 in	2.95 in	91 mm	75 mm			1.3 A
