RT2855 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

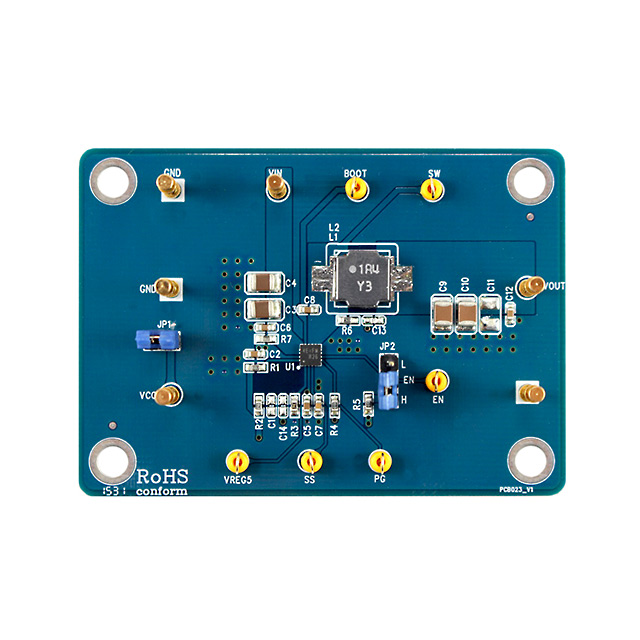

EVAL MODULE FOR RT2855BHGQW
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Current - Output | Main Purpose | Contents | Regulator Topology | Voltage - Output | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Frequency - Switching | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Topology | Mounting Type | Package / Case | Output Type | Voltage - Output (Max) [Max] | Voltage - Input (Min) [Min] | Function | Output Configuration | Synchronous Rectifier | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | 4 A | DC/DC Step Down | Board(s) | Buck | 1.05 V | RT2855B | 18 V | 4.5 V | 650 kHz | ||||||||||||||
 Richtek USA Inc. | 4 A | 650 kHz | 1 | 85 C | -40 ¯C | 18 V | Buck | Surface Mount | 16-WFQFN Exposed Pad | Adjustable | 7 V | 4.5 V | Step-Down | Positive | 16-WQFN (3x3) |
