100 Series

Catalog

TUBE ROHS COMPLIANT: YES

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Transformer Type	ET (Volt-Time)	Inductance	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Weight [custom]	Weight [custom]	Turns Ratio - Primary:Secondary	Turns Ratio - Primary:Secondary [custom]
Murata Electronics 1009C	0.593 "	0.593 "	15.06 mm	15.06 mm	Through Hole	General Purpose	550 VµS	22 mH	1	1	1	70 °C	16.25 mm	0.64 in
Murata Electronics 1007C	0.593 "	0.593 "	15.06 mm	15.06 mm	Through Hole	General Purpose	310 VµS	7.4 mH	1	1	1	70 °C	16.25 mm	0.64 in

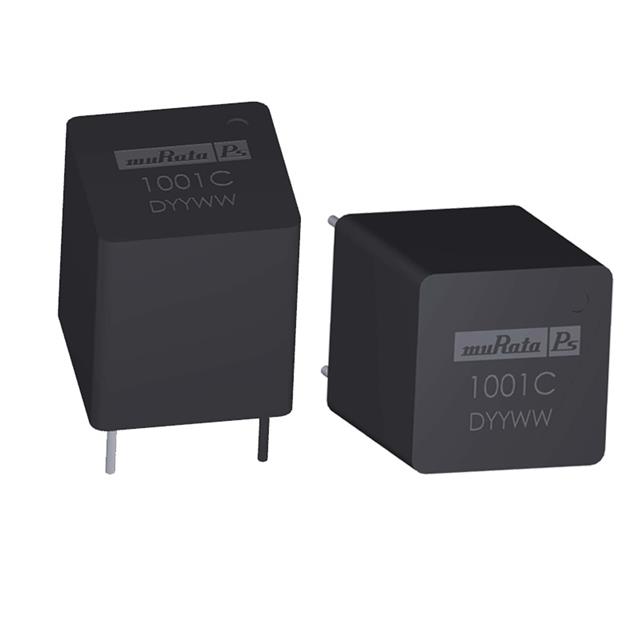

Murata Electronics 1001C	0.593 "	0.593 "	15.06 mm	15.06 mm	Through Hole		200 VµS	3 mH				70 °C	16.25 mm	0.64 in	0.29 oz	8.22 g	1:1
Murata Electronics 1003C	0.593 "	0.593 "	15.06 mm	15.06 mm	Through Hole		400 VµS	12 mH	2	1		70 °C	16.25 mm	0.64 in	0.29 oz	8.22 g		1
Murata Electronics 1002C	0.593 "	0.593 "	15.06 mm	15.06 mm	Through Hole		200 VµS	3 mH	1	1	1	70 °C	16.25 mm	0.64 in	0.29 oz	8.22 g
