IL-2P-S3 Series

Catalog

CONN HEADER R/A 2POS 2.5MM

Part	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Type	Insulation Height	Insulation Height	Termination	Connector Type	Style	Material Flammability Rating	Number of Positions	Contact Material	Insulation Material	Number of Positions Loaded	Contact Shape	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Finish - Post	Insulation Height	Overall Contact Length	Overall Contact Length
JAE Electronics IL-2P-S3FP2-1	Right Angle Through Hole	Friction Lock	3.9 µin	0.099 µm	Shrouded - 1 Wall	Male Pin	0.256 in	6.5 mm	Solder	Header	Board to Cable/Wire	UL94 V-0	2	Brass	Nylon 6/6 Polyamide (PA66)	All	Square	6 mm	0.236 in	Brown	Gold	0.138 in	3.5 mm	2.5 mm	0.098 in	1

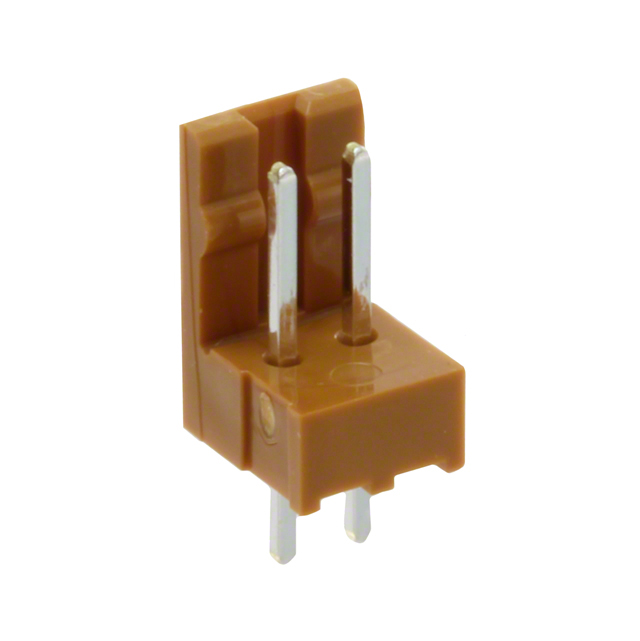

JAE Electronics IL-2P-S3EN2	Through Hole	Friction Lock			Shrouded - 1 Wall	Male Pin		0.382 in	Solder	Header	Board to Cable/Wire	UL94 V-0	2	Brass	Nylon 6/6 Polyamide (PA66)	All	Square	6 mm	0.236 in	Brown		0.138 in	3.5 mm	2.5 mm	0.098 in	1	Tin	9.7 mm	0.5 in	12.7 mm

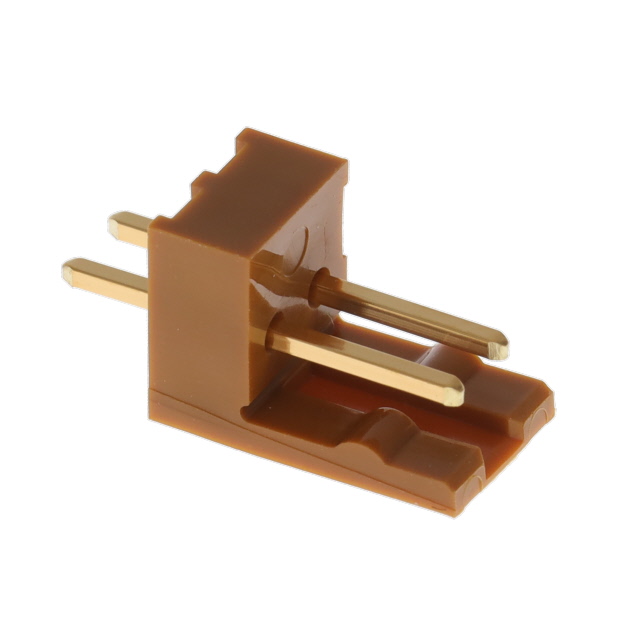

JAE Electronics IL-2P-S3EN2-1	Through Hole	Friction Lock	3.9 µin	0.099 µm	Shrouded - 1 Wall	Male Pin		0.382 in	Solder	Header	Board to Cable/Wire	UL94 V-0	2	Brass	Nylon 6/6 Polyamide (PA66)	All	Square	6 mm	0.236 in	Brown	Gold	0.138 in	3.5 mm	2.5 mm	0.098 in	1		9.7 mm	0.5 in	12.7 mm
JAE Electronics IL-2P-S3FP2	Right Angle Through Hole	Friction Lock			Shrouded - 1 Wall	Male Pin	0.256 in	6.5 mm	Solder	Header	Board to Cable/Wire	UL94 V-0	2	Brass	Nylon 6/6 Polyamide (PA66)	All	Square	6 mm	0.236 in	Brown		0.138 in	3.5 mm	2.5 mm	0.098 in	1	Tin
