J205G Series

Catalog

PRESSURE SWITCH 1.2-20 PSIG

Part	Package / Case	Port Style	Termination Style	Maximum Pressure	Maximum Pressure	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Port Size	Port Size	Port Size	Accuracy	Accuracy	Pressure Type	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]

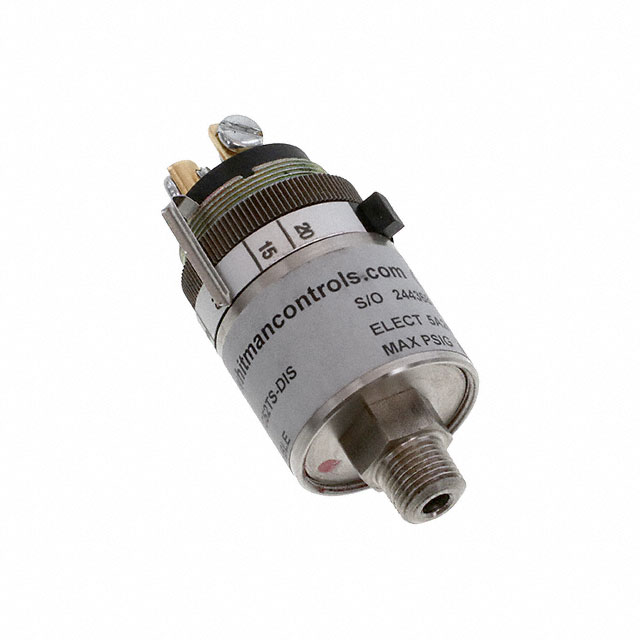

Whitman Controls, LLC J205G-2S-C52TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	20 PSI 137.9 kPa	1.2 PSI 8.27 kPa	0.125 in	Male NPT	3.18 mm	5.52 kPa	0.8 PSI	Switch

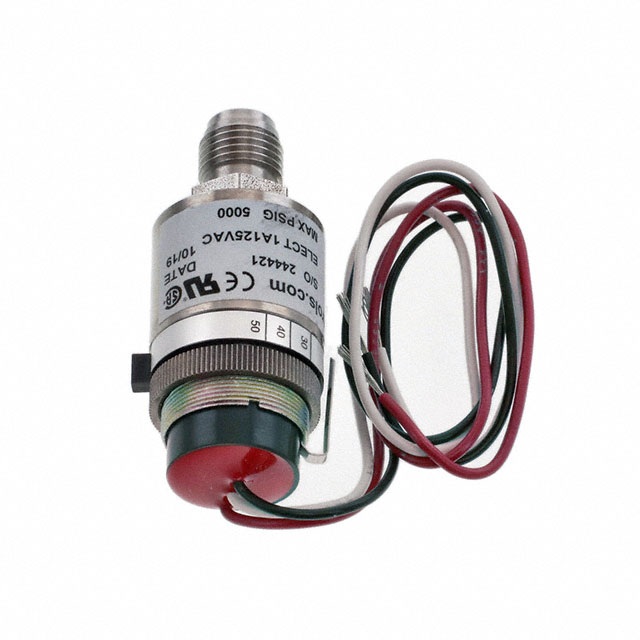

Whitman Controls, LLC J205G-5S-VCR-C12L-DIS	Cylinder Threaded	Threaded	Wire Leads	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C				Male VCR®	0.25 in	13.79 kPa	2 PSI	Switch	13.79 kPa	344.74 kPa	2 PSI	50 PSI

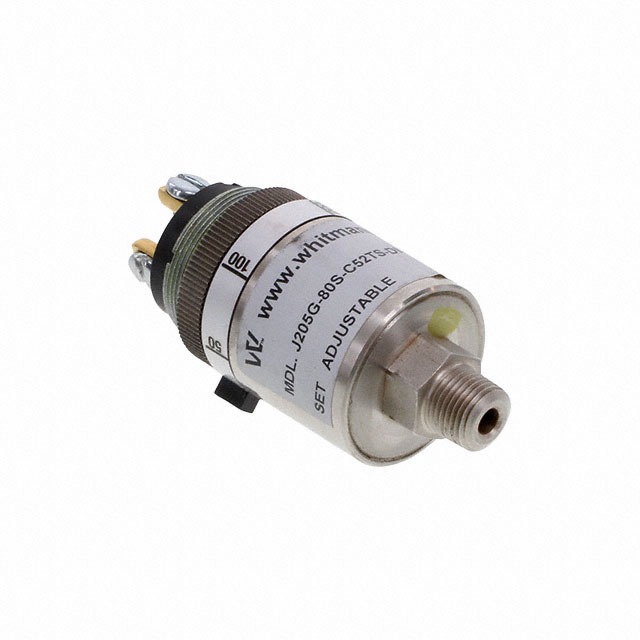

Whitman Controls, LLC J205G-80S-C52TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	800 PSI 5515.81 kPa	100 PSI 689.48 kPa	0.125 in	Male NPT	3.18 mm	275.79 kPa	40 PSI	Switch

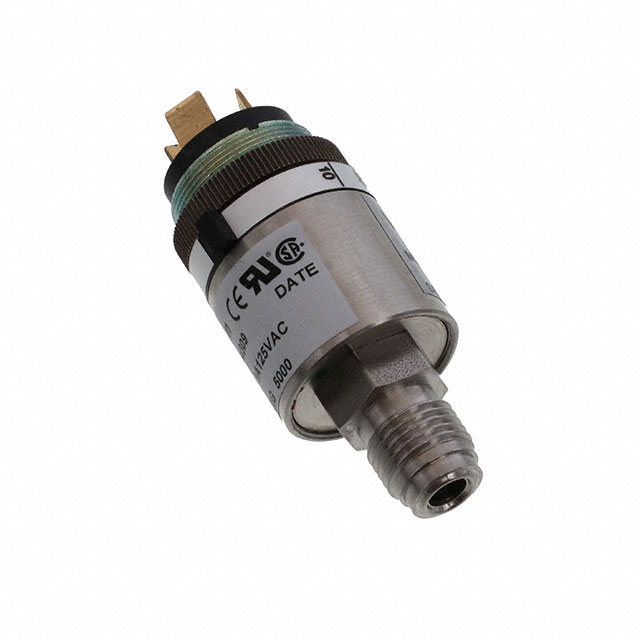

Whitman Controls, LLC J205G-10S-VCR-C12TB-DIS	Cylinder Threaded	Threaded	Quick Connect - 0.250" (6.3mm)	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	100 PSI	4 PSI		Male VCR®	0.25 in	27.58 kPa	4 PSI	Switch			27.58 kPa	689.48 kPa

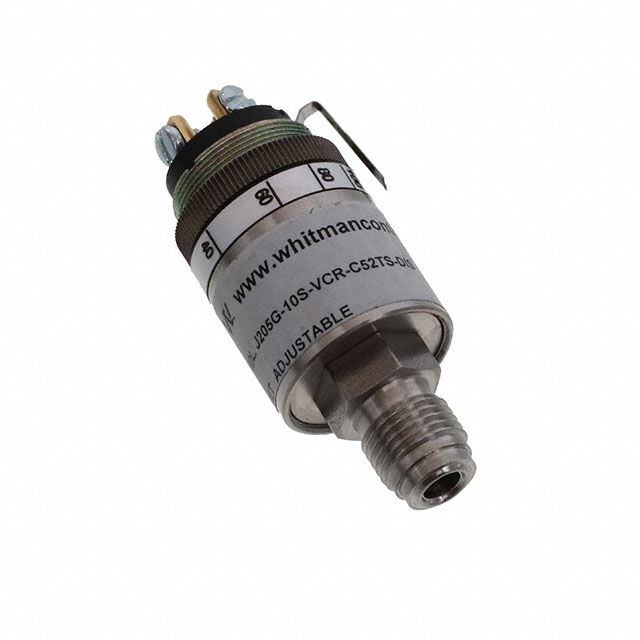

Whitman Controls, LLC J205G-10S-VCR-C52TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	100 PSI	4 PSI		Male VCR®	0.25 in	27.58 kPa	4 PSI	Switch			27.58 kPa	689.48 kPa

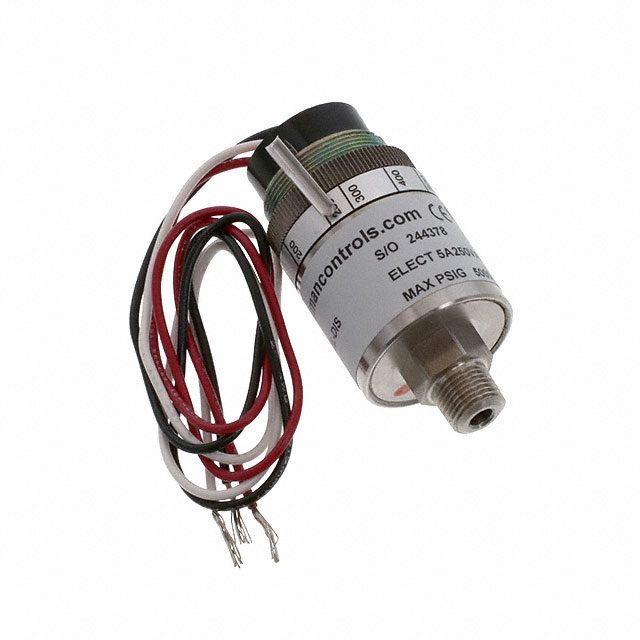

Whitman Controls, LLC J205G-50S-C52L-DIS	Cylinder Threaded	Threaded	Wire Leads	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	500 PSI	20 PSI	0.125 in	Male NPT	3.18 mm	137.9 kPa	20 PSI	Switch			137.9 kPa	3447.38 kPa

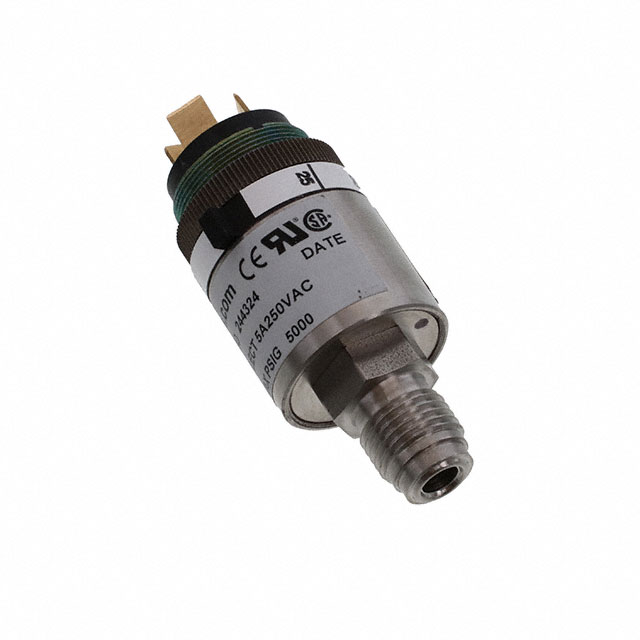

Whitman Controls, LLC J205G-25S-VCR-C52TB-DIS	Cylinder Threaded	Threaded	Quick Connect - 0.250" (6.3mm)	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	250 PSI	10 PSI		Male VCR®	0.25 in	68.95 kPa	10 PSI	Switch			68.95 kPa	1723.69 kPa
Whitman Controls, LLC J205G-5S-C12TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C			0.125 in	Male NPT	3.18 mm	13.79 kPa	2 PSI	Switch	13.79 kPa	344.74 kPa	2 PSI	50 PSI

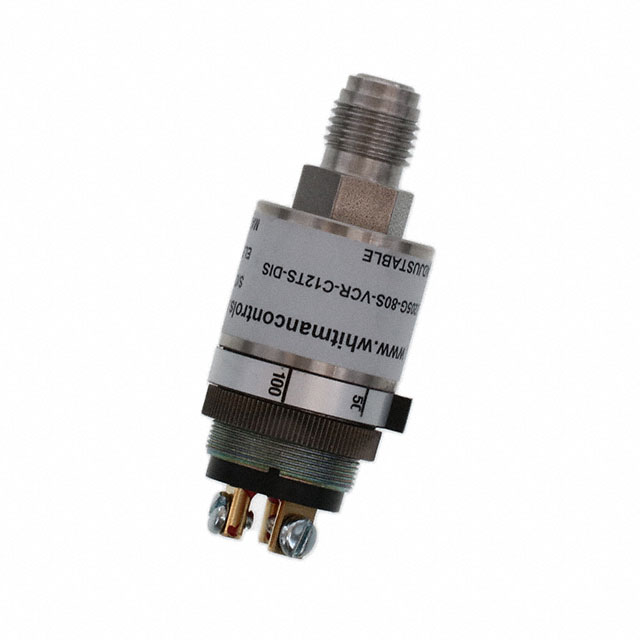

Whitman Controls, LLC J205G-80S-VCR-C12TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	800 PSI 5515.81 kPa	100 PSI 689.48 kPa		Male VCR®	0.25 in	275.79 kPa	40 PSI	Switch

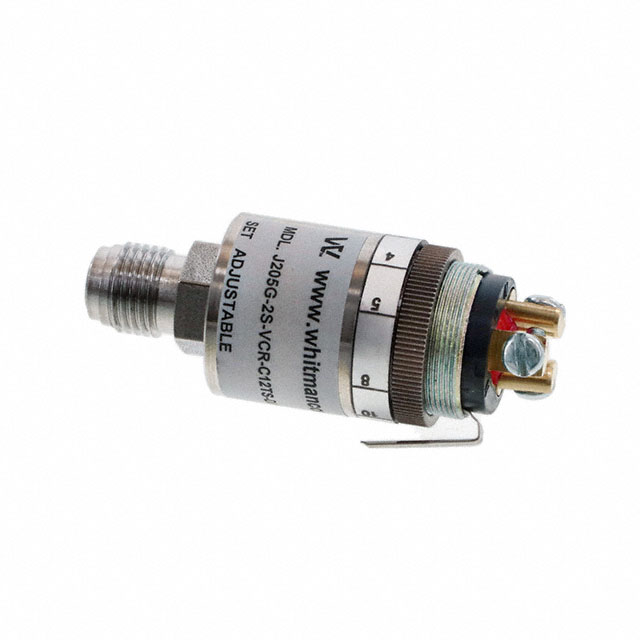

Whitman Controls, LLC J205G-2S-VCR-C12TS-DIS	Cylinder Threaded	Threaded	Screw Terminal	5000 PSI	34473.79 kPa	SPDT	107 °C	-54 °C	20 PSI 137.9 kPa	1.2 PSI 8.27 kPa		Male VCR®	0.25 in	5.52 kPa	0.8 PSI	Switch
