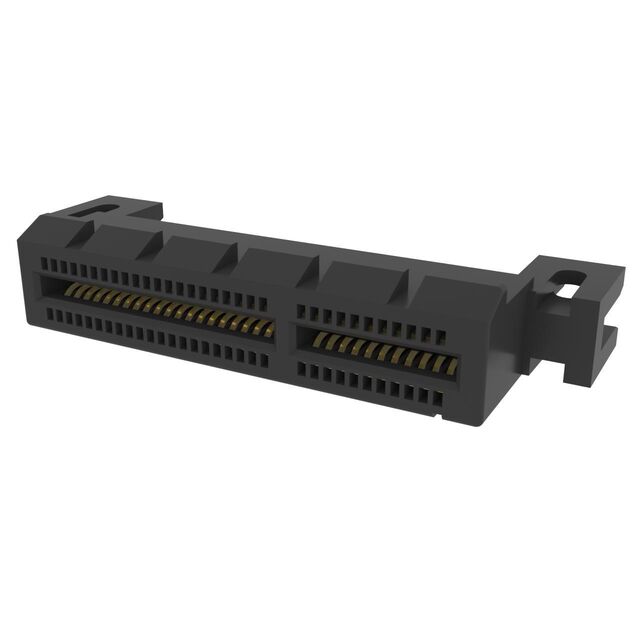

10069690 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN PCI EXP FMALE 36POS 0.039
| Part | Material - Insulation | Card Type | Contact Material | Read Out | Flange Feature | Flange Feature | Flange Feature | Contact Finish | Mounting Type | Pitch | Pitch | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Number of Rows [custom] | Contact Finish Thickness | Color | Gender | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 36 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Flash | Black | Female | 1.57 mm | 0.062 in | ||
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 98 | -55 C | 85 °C | Solder | Card Extender Locking Ramp Pick and Place | 2 | Black | Female | 1.57 mm | 0.062 in | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 64 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Black | Female | 1.57 mm | 0.062 in | 15 µin | 0.38 µm | |
Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 36 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Black | Female | 1.57 mm | 0.062 in | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 36 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Black | Female | 1.57 mm | 0.062 in | 15 µin | 0.38 µm | |
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 98 | -55 C | 85 °C | Solder | Card Extender Locking Ramp Pick and Place | 2 | Black | Female | 1.57 mm | 0.062 in | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 36 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Black | Female | 1.57 mm | 0.062 in | 30 Áin | 0.76 Ám | |
 Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 64 | -55 C | 85 °C | Solder | Card Extender Locking Ramp | 2 | Black | Female | 1.57 mm | 0.062 in | 30 Áin | 0.76 Ám | |
Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 98 | -55 C | 85 °C | Solder | Card Extender Locking Ramp Pick and Place | 2 | Black | Female | 1.57 mm | 0.062 in | 15 µin | 0.38 µm | |
Amphenol ICC (FCI) | Thermoplastic | PCI Express™ | Copper Alloy | Dual | Straddle Mount Opening Unthreaded | 2 mm | 0.079 " | Gold | Board Edge Straddle Mount | 1 mm | 0.039 in | 98 | -55 C | 85 °C | Solder | Card Extender Locking Ramp Pick and Place | 2 | Flash | Black | Female | 1.57 mm | 0.062 in |
