0356-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Termination	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth	Socket Depth	Contact Finish
Mill-Max Manufacturing Corp. 0356-0-15-80-34-80-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	200 Áin	5.08 Ám	5.92 mm	0.233 in	Tin

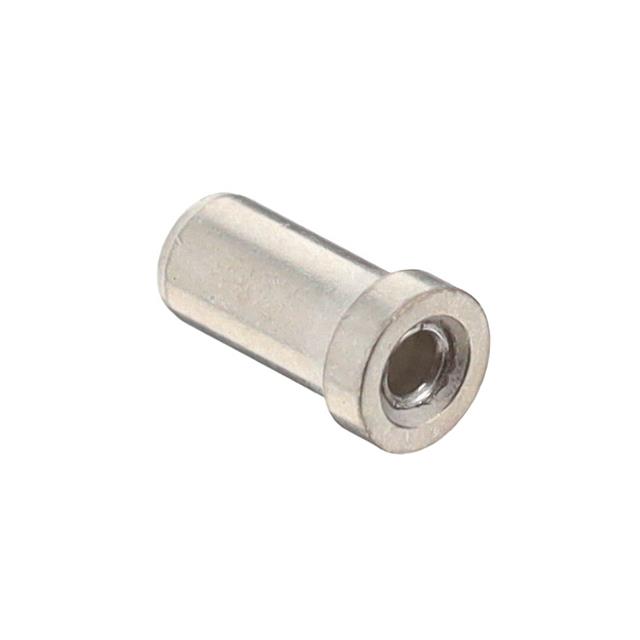

Mill-Max Manufacturing Corp. 0356-0-15-01-34-01-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	200 Áin	5.08 Ám	5.92 mm	0.233 in	Tin-Lead
Mill-Max Manufacturing Corp. 0356-0-15-01-34-14-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	10 Áin	0.25 Ám	5.92 mm	0.233 in	Gold
Mill-Max Manufacturing Corp. 0356-0-15-80-34-14-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	10 Áin	0.25 Ám	5.92 mm	0.233 in	Gold
Mill-Max Manufacturing Corp. 0356-0-15-01-34-27-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	30 Áin	0.76 Ám	5.92 mm	0.233 in	Gold

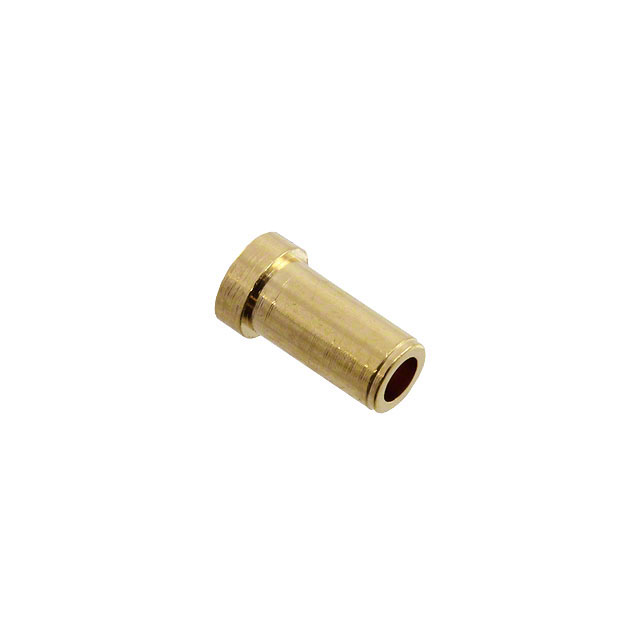

Mill-Max Manufacturing Corp. 0356-0-15-15-34-27-10-0	-55 C	125 °C	0.233 in	5.92 mm	Solder	Beryllium Copper	No Tail	0.126 in	3.2 mm	1.17 mm	0.81 mm	0.046 "	0.032 "	0.102 in	2.59 mm	1.63 mm	0.064 in	30 Áin	0.76 Ám	5.92 mm	0.233 in	Gold
