CFM60S Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
AC/DC CONVERTER 3.3V 26W
| Part | Features | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Number of Outputs | Efficiency | Type | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Current - Output (Max) [Max] | Voltage - Output 1 | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Applications | Package / Case | Current - Output 1 | Voltage - Isolation | Line Regulation | Load Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

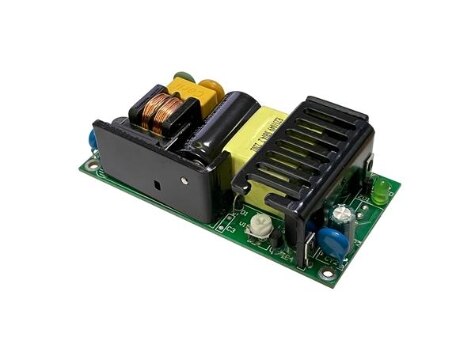

 Cincon Electronics Co. LTD | Universal Input | Through Hole | 101.6 mm | 2 in | 4 " | 32.4 mm | 50.8 mm | 1.27 " | 1 | 72 % | Open Frame | 70 °C | 0 °C | 62368-1 | 8 A | 3.3 V | 26 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | Module | ||||

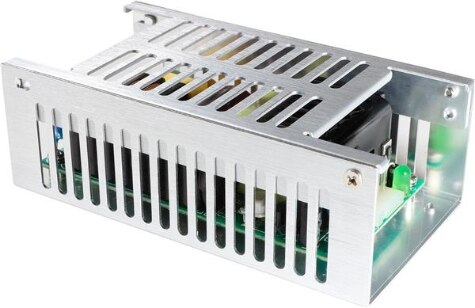

 Cincon Electronics Co. LTD | Universal Input | Chassis Mount | 117 mm | 2.44 " | 4.61 " | 40 mm | 62 mm | 1.58 in | 1 | 88 % | Enclosed | 70 °C | 0 °C | 48 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | 1.25 A | 4.242 kV | |||||
 Cincon Electronics Co. LTD | Universal Input | Chassis Mount | 117 mm | 2.44 " | 4.61 " | 40 mm | 62 mm | 1.58 in | 1 | 86 % | Enclosed | 70 °C | 0 °C | 30 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | 2 A | 4.242 kV | |||||
Cincon Electronics Co. LTD | Universal Input | Chassis Mount | 117 mm | 2.44 " | 4.61 " | 40 mm | 62 mm | 1.58 in | 1 | 84 % | Enclosed | 70 °C | 0 °C | 9 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | 6.67 A | 4.242 kV | |||||
Cincon Electronics Co. LTD | Universal Input | Chassis Mount | 117 mm | 2.44 " | 4.61 " | 40 mm | 62 mm | 1.58 in | 1 | 72 % | Enclosed | 70 °C | 0 °C | 3.3 V | 26 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | 8 A | 4.242 kV | |||||
Cincon Electronics Co. LTD | Universal Input | Through Hole | 101.6 mm | 2 in | 4 " | 32.4 mm | 50.8 mm | 1.27 " | 1 | 84 % | Open Frame | 70 °C | 0 °C | 62368-1 | 6.67 A | 9 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | Module | 0.5 % | ±1% | ||
Cincon Electronics Co. LTD | Universal Input | Through Hole | 101.6 mm | 2 in | 4 " | 32.4 mm | 50.8 mm | 1.27 " | 1 | 86 % | Open Frame | 70 °C | 0 °C | 62368-1 | 4 A | 15 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | Module | ||||
Cincon Electronics Co. LTD | ||||||||||||||||||||||||||
Cincon Electronics Co. LTD | Universal Input | Chassis Mount | 117 mm | 2.44 " | 4.61 " | 40 mm | 62 mm | 1.58 in | 1 | 85 % | Enclosed | 70 °C | 0 °C | 12 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | 5 A | 4.242 kV | |||||
Cincon Electronics Co. LTD | Universal Input | Through Hole | 101.6 mm | 2 in | 4 " | 32.4 mm | 50.8 mm | 1.27 " | 1 | 86 % | Open Frame | 70 °C | 0 °C | 62368-1 | 2 A | 30 V | 60 W | 264 VAC | 90 VAC | CE cURus FCC TUV | ITE (Commercial) | Module | 0.5 % | ±1% |
