9113-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

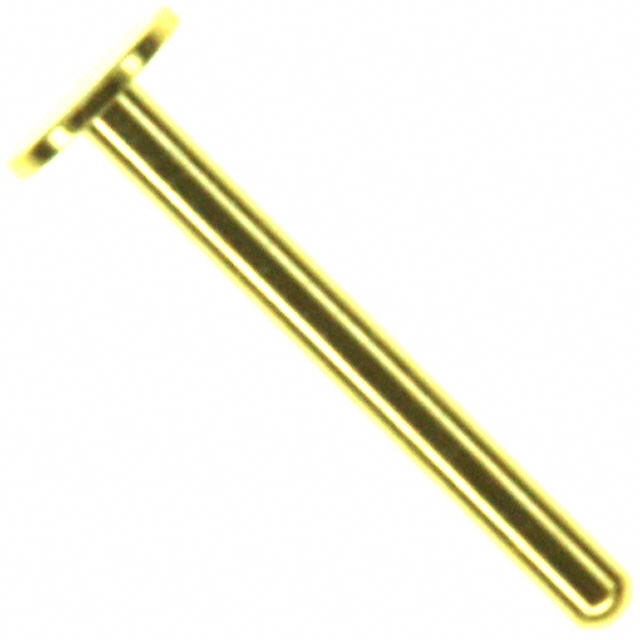

CONN PC PIN CIRC 0.018DIA GOLD
| Part | Flange Diameter | Flange Diameter | Termination | Insulation | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.05 in | 1.27 mm | Solder | Non-Insulated | Nail Head Single End | 0.25 Ám | 10 Áin | Through Hole | PC Pin | 0.56 mm | 0.022 in | Gold | Brass Alloy | 0.018 in | 0.46 mm | 0.166 in | 4.22 mm | 0.16 in | 4.06 mm |
