323199 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

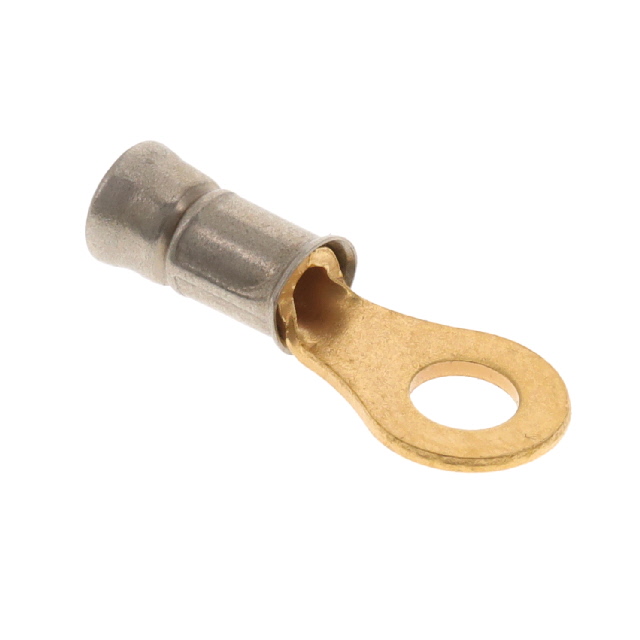

CONN RING CIRC 16-22AWG #6 CRIMP
| Part | Termination | Contact Finish | Features | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Thickness | Thickness | Contact Material | Insulation | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Nickel | Serrated Termination | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | 22 AWG | 16 AWG | Free Hanging (In-Line) | 6 Stud | 0.749 in | 19.02 mm | 7.14 mm | 0.281 in | 0.031 in | 0.79 mm | Copper | Non-Insulated | Circular |
