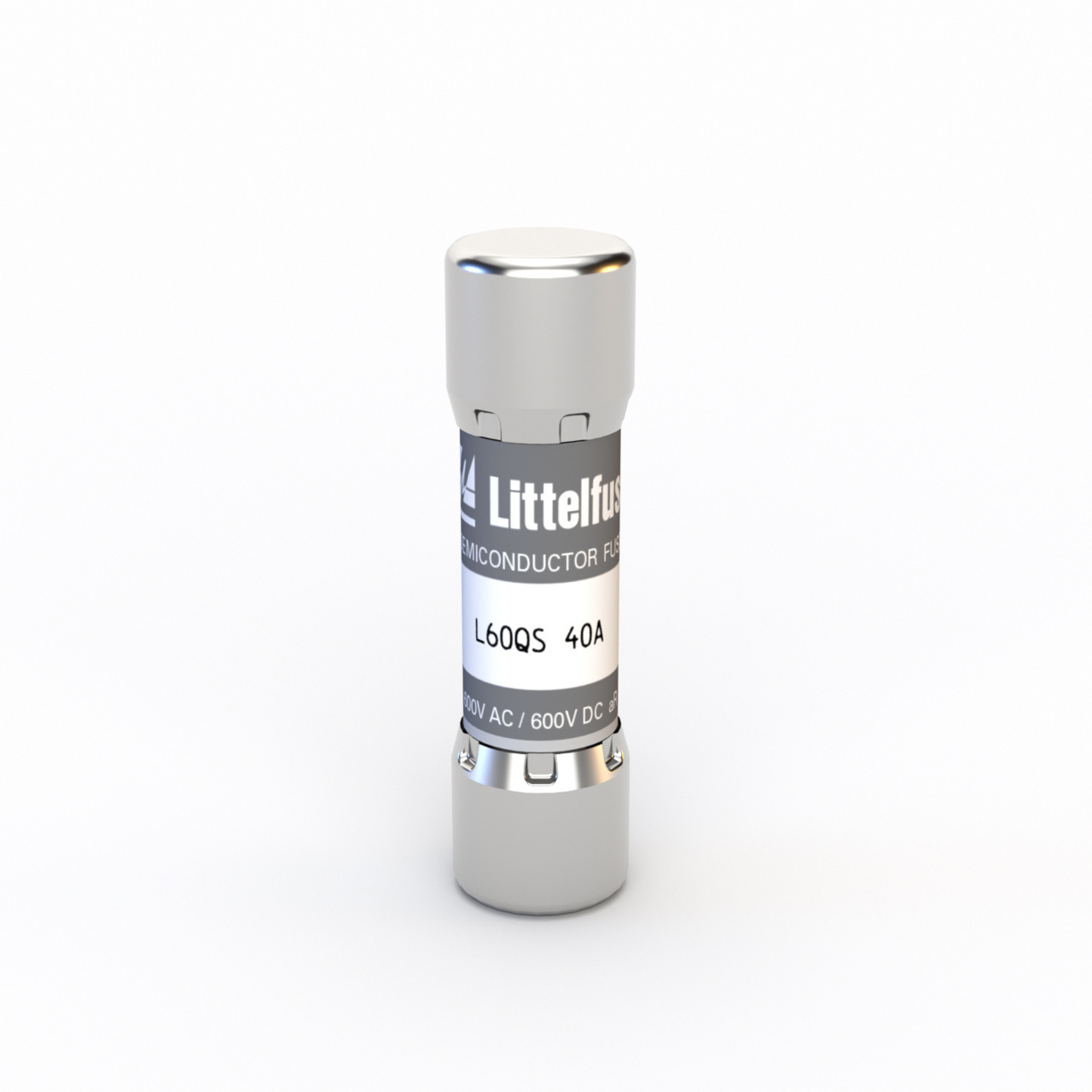

L60QS040 Series

HSF 10X38 CYL FERRULE 600V AC/DC 40A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

HSF 10X38 CYL FERRULE 600V AC/DC 40A

Part	Mounting Type	Approval Agency	Response Time	Fuse Type	Voltage Rating - AC	Applications	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Class	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Package / Case [y]	Package / Case	Package / Case [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC
Littelfuse/Commercial Vehicle Products L60QS040.T	Requires Holder	CE cURus	Fast Blow	Cartridge	600 VAC	Electrical Industrial	38 mm	0.406 in	1.496 "	10.3 mm	aR	40 A	100 kA 200 kA	0.0025 Ohms	38.1 mm	5AG	10 mm	-55 °C	125 °C	600 V

Catalog

HSF 10X38 CYL FERRULE 600V AC/DC 40A

Description

The Littelfuse QS series of High-speed Semiconductor Fuses is designed to safeguard power semiconductor devices.These cylindrical-shaped, 10x38 mm fuses with higher current ratings, are fast-acting and extremely current limiting. Theyprovide balanced performance and reliable short-circuit protection to extend product longevity while lowering potentiallydamaging heat energy to the device being protected.
