4312M Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

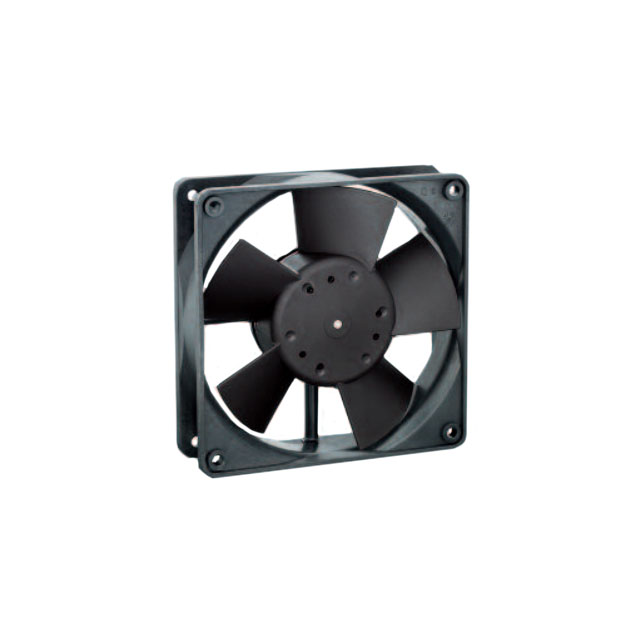

FAN AXIAL 119X32MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Noise | RPM | Bearing Type | Weight | Weight | Width [y] | Features | Fan Type | Approval Agency | Operating Temperature | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Voltage - Rated | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Air Flow | Air Flow | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 15 V | 8 V | 70000 Hrs | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 39 dB(A) | 2300 RPM | Ball | 219.99 g | 0.485 lb | 32 mm | Temperature Sensor | Tubeaxial | CE CSA UL VDE | (-20 ~ 65°C) | -20 ░C | 65 °C | 3.3 W | 12 VDC | Square | 119 mm | 119 mm | 81.2 CFM | 2.27 m³/min | 2 Wire Leads |
