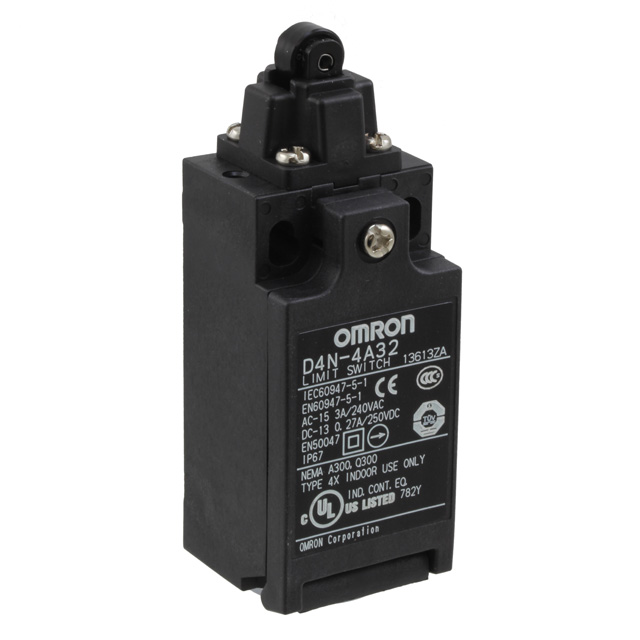

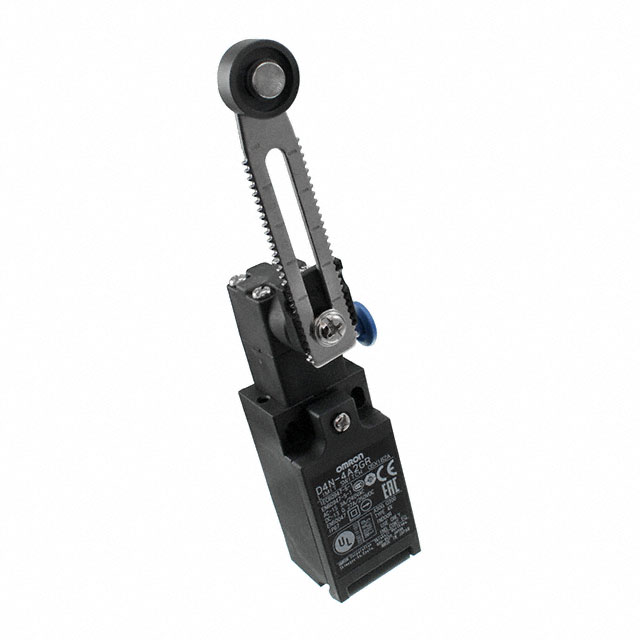

D4N-4A2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
SWITCH SNAP ACTION DPST 10A 120V
| Part | Mechanical Life | Pretravel | Ingress Protection | Mounting Type | Voltage Rating - DC | Termination Style | Switch Function | Electrical Life | Circuit | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Features | Overtravel | Release Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1000000 Cycles | 18 ° | IP67 - Dust Tight Waterproof | Chassis Mount | 125 VDC | Screw Terminal | Off-On On-Off | 300000 Cycles | DPST-NO/NC | 571 gf | 70 °C | -30 ░C | Side Rotary Adjustable Roller | 2.5 A 10 A | 120 V | Metal Lever Reset Function Resin Roller | ||
 Omron Electronics Inc-EMC Div | 15000000 Cycles | 18 ° | IP67 - Dust Tight Waterproof | Chassis Mount | 250 V | Screw Terminal | Off-Mom On-Mom | 300000 Cycles | DPST-NO/NC | 459 gf | 70 °C | -30 ░C | Side Rotary Adjustable Roller | 3 A 270 mA | 240 V | Metal Lever Resin Roller | 40 ° | 41 gf |
 Omron Electronics Inc-EMC Div | 1000000 Cycles | 18 ° | IP67 - Dust Tight Waterproof | Chassis Mount | 125 VDC | Screw Terminal | Off-On On-Off | 300000 Cycles | DPST-NO/NC | 571 gf | 70 °C | -30 ░C | Side Rotary Adjustable Roller | 2.5 A 10 A | 120 V | Metal Lever Reset Function Resin Roller |
