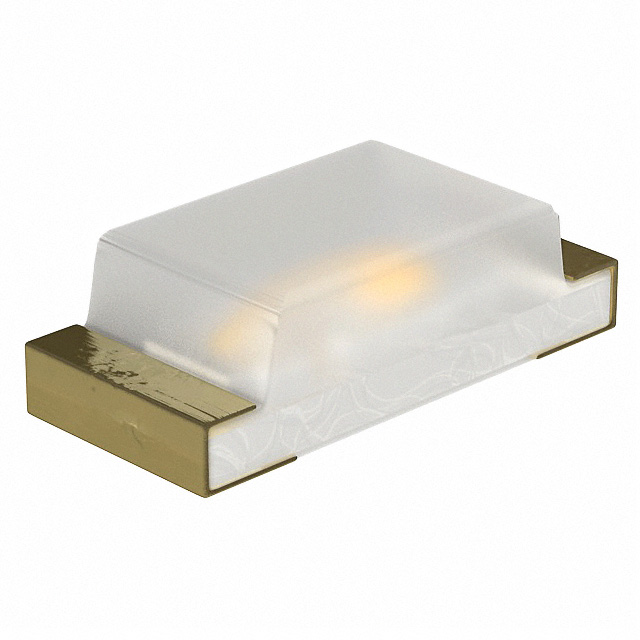

APT1608 Series

Catalog

LED UNI-COLOR BLUE 461NM 2-PIN CHIP LED T/R

Part	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Size [y]	Lens Size [x]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Viewing Angle	Package / Case	Package / Case	Mounting Type	Lens Color	Wavelength - Dominant	Color	Millicandela Rating	Configuration	Current - Test	Lens Style
Kingbright APT1608QBC/G	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	461 nm	3.3 V	120 °	1608 Metric	0603	Surface Mount	Colorless	465 nm	Blue	160 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608SRCPRV	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	655 nm	1.85 V	120 °	1608 Metric	0603	Surface Mount	Colorless	640 nm	Red	30 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608PBC/Z	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	467 nm	3.2 V	120 °	1608 Metric	0603	Surface Mount	Colorless	470 nm	Blue	160 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608VBC/D	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	465 nm	3.3 V	120 °	1608 Metric	0603	Surface Mount	Colorless	470 nm	Blue	180 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608-WVT55		1.6 mm	0.8 mm	Chip LED						1608 Metric	0603	Surface Mount

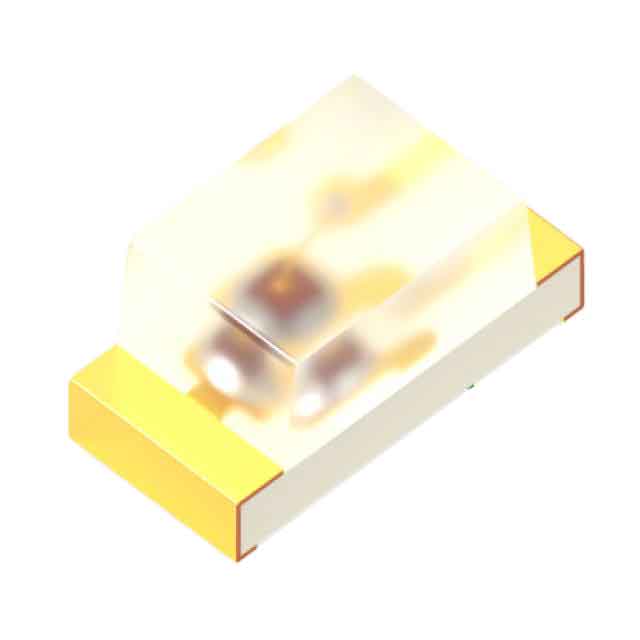

Kingbright APT1608SGC	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	565 nm	2.2 V	120 °	1608 Metric	0603	Surface Mount	Colorless	568 nm	Green	12 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608PYW	Diffused	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	583 nm	2.1 V	120 °	1608 Metric	0603	Surface Mount	White	585 nm	Yellow	8 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608SYCK/J3-PRV	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	590 nm	2 V	120 °	1608 Metric	0603	Surface Mount	Colorless	590 nm	Yellow	320 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608SECK/J4-PRV	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm	611 nm	2.2 V	120 °	1608 Metric	0603	Surface Mount	Colorless	605 nm		550 mcd	Standard	20 mA	Rectangle with Flat Top
Kingbright APT1608CGCK	Clear	1.6 mm	0.8 mm	Chip LED	0.8 mm	1.2 mm		2.1 V	120 °	1608 Metric	0603	Surface Mount	Colorless	570 nm	Green	50 mcd	Standard	20 mA	Rectangle with Flat Top
