TSD Series

Manufacturer: OptiFuse

Catalog

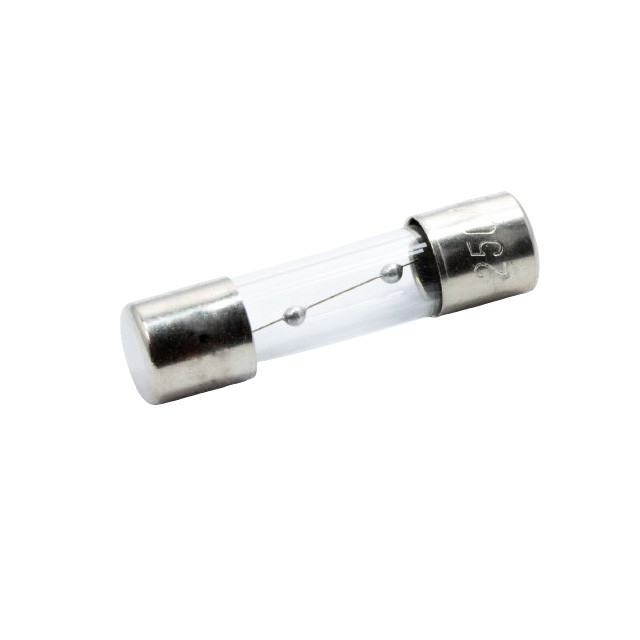

FUSE GLASS 3.15A 250VAC 5X20MM

Part	Melting I˛t	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Response Time	Approval Agency	Fuse Type	Melting I²t	Mounting Type	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Package / Case [x]	Package / Case [y]
OptiFuse TSD-3.15A	36.91	-55 C	125 °C	35 A	3.15 A	Slow Blow	cURus IEC 60127	Cartridge Glass	36.91 I²t	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-315MA	0.4833	-55 C	125 °C	35 A	0.315 A	Slow Blow	IEC 60127	Cartridge Glass	0.4833 I²t	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-100MA	0.0223	-55 C	125 °C	35 A	100 mA	Slow Blow	IEC 60127	Cartridge Glass	0.0223	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-4A	70.56	-55 C	125 °C	35 A	4 A	Slow Blow	cURus IEC 60127	Cartridge Glass	70.56	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-5A	108.7	-55 C	125 °C	35 A	5 A	Slow Blow	cURus IEC 60127	Cartridge Glass	108.7 I²t	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-10A	583.4	-55 C	125 °C	35 A	10 A	Slow Blow	cURus IEC 60127	Cartridge Glass	583.4 I²t	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-630MA	1.583	-55 C	125 °C	35 A	0.63 A	Slow Blow	IEC 60127	Cartridge Glass	1.583	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-500MA	1.362	-55 C	125 °C	35 A	0.5 A	Slow Blow	IEC 60127	Cartridge Glass	1.362	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-1A		-55 C	125 °C	35 A	1 A	Slow Blow	cURus IEC 60127	Cartridge Glass	5.309	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
OptiFuse TSD-160MA	0.0767	-55 C	125 °C	35 A	160 mA	Slow Blow	IEC 60127	Cartridge Glass	0.0767	Requires Holder	250 V	20 mm	0.205 in	0.787 "	5.2 mm	5 mm	20 mm
