5686 Series

Manufacturer: BRADY

Catalog

B689 5686-I WHT/RED STYLE I

Part	Legend (Text)	Color - Legend	Location	Shape	Application Specifics	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Applications	Language	Print Type	Width	Width	Color - Background	Arrangement	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Mounting Type	Legend (Symbol Only)	Length	Length	Material - Body	Features	Length [x]	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]
BRADY 5686-I	Fire Auto Sprinklers	White	Outdoor	Rectangle	Directionality	1.5 in	38.1 mm	Pipe	63000 A 69000 A	Pre-Printed	8 in	203.2 mm	Red	Symbol and Text	60.33 mm	2.375 in	Snap On	Directional Arrow	9 in	228.6 mm	Plastic	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant

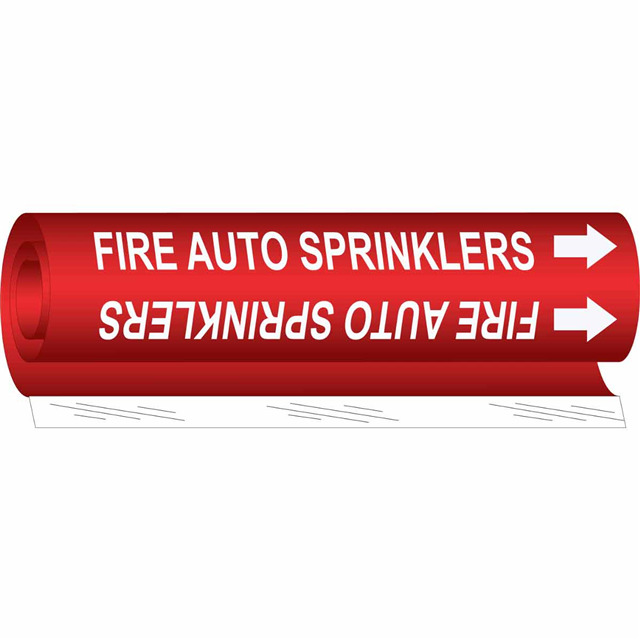

BRADY 5686-II	Fire Auto Sprinklers	White	Outdoor	Rectangle	Notice			Pipe	63000 A 69000 A	Pre-Printed	12 in	304.8 mm	Red	Symbol and Text		7.875 in	Snap On	Directional Arrow			Plastic	Chemical Resistant	660.4 mm	26 in	63.5 mm	2.5 in	200.03 mm
BRADY 5686-O	Fire Auto Sprinklers	White	Outdoor	Rectangle	Notice			Pipe	63000 A 69000 A	Pre-Printed			Red	Symbol and Text	34.93 mm	1.375 in	Snap On	Directional Arrow	8 in	203.2 mm	Plastic	Chemical Resistant						127 mm	127 mm	0.5 in	12.7 mm
