NPPN091 Series

Catalog

CONN HDR 9POS 0.079 GOLD SMD

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Mating	Voltage Rating	Mounting Type	Termination	Contact Finish - Post	Number of Positions	Fastening Type	Contact Type	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post

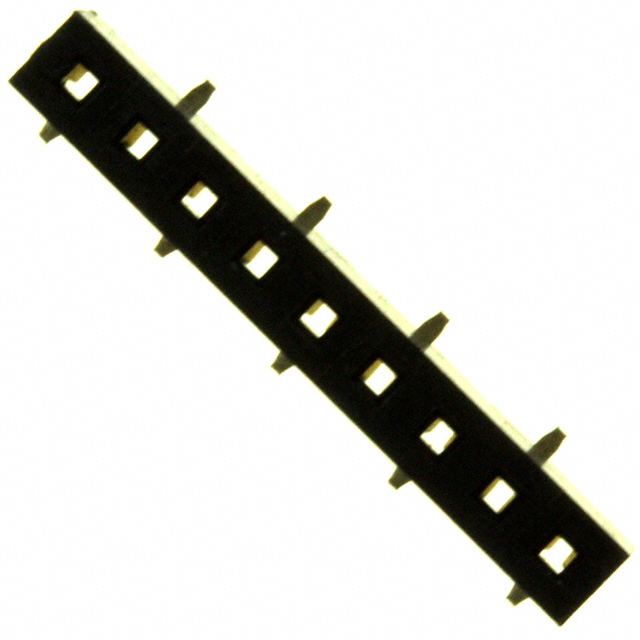

Sullins Connector Solutions NPPN091BFLD-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	0.079 "	2 mm	Black	Flash	Gold	150 VDC	Surface Mount	Solder	Gold	9	Push-Pull	Female Socket	Header	UL94 V-0	-40 C	105 ░C	All	0.181 in	4.6 mm	2 A	1

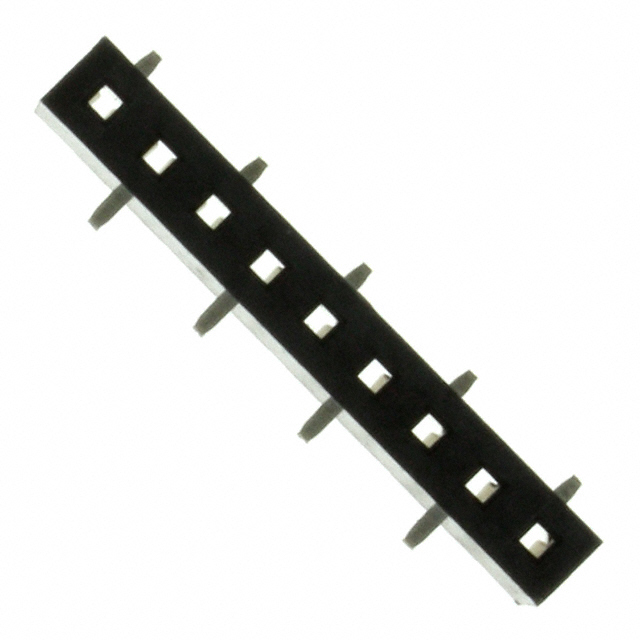

Sullins Connector Solutions NPPN091BFLC-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	0.079 "	2 mm	Black	Flash	Gold	150 VDC	Surface Mount	Solder	Gold	9	Push-Pull	Female Socket	Header	UL94 V-0	-40 C	105 ░C	All	0.181 in	4.6 mm	2 A	1

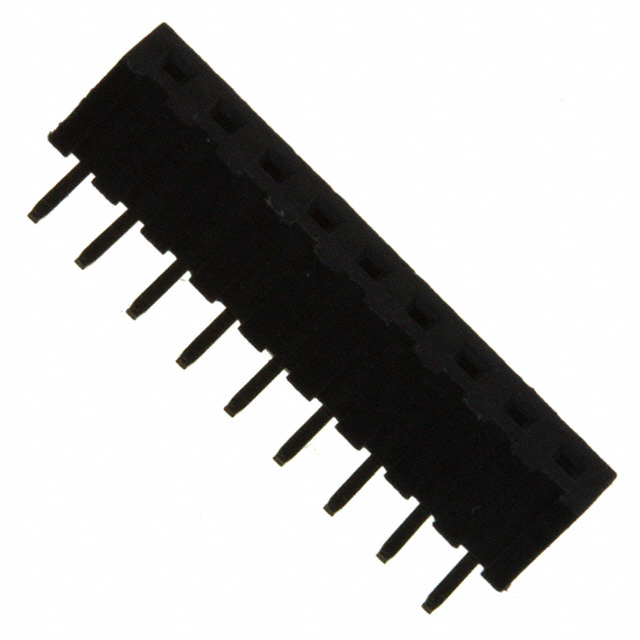

Sullins Connector Solutions NPPN091FGGN-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	0.079 "	2 mm	Black	Flash	Gold		Right Angle Through Hole	Solder	Gold	9	Push-Pull	Female Socket	Header	UL94 V-0	-40 C	105 ░C	All			2 A	1	0.122 in	3.1 mm

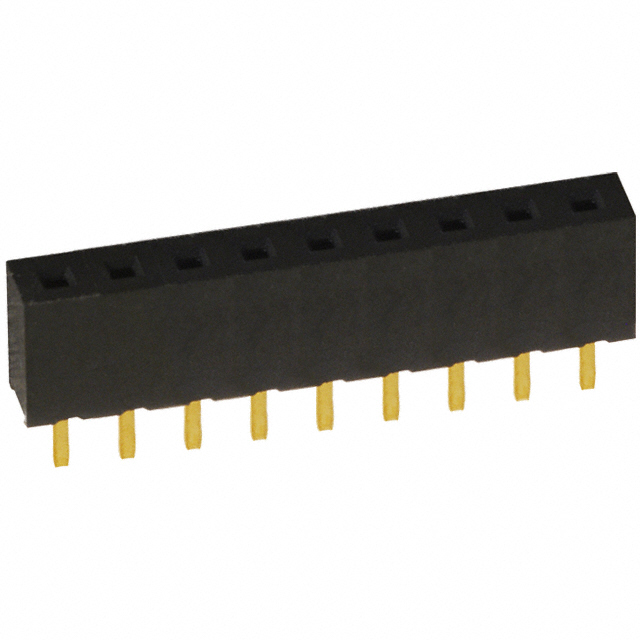

Sullins Connector Solutions NPPN091BFCN-RC	Square	Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Flash	0.079 "	2 mm	Black	Flash	Gold		Through Hole	Solder	Gold	9	Push-Pull	Female Socket	Header	UL94 V-0	-40 C	105 ░C	All			2 A	1			4.4 mm	0.173 in	2.4 mm	0.094 in
