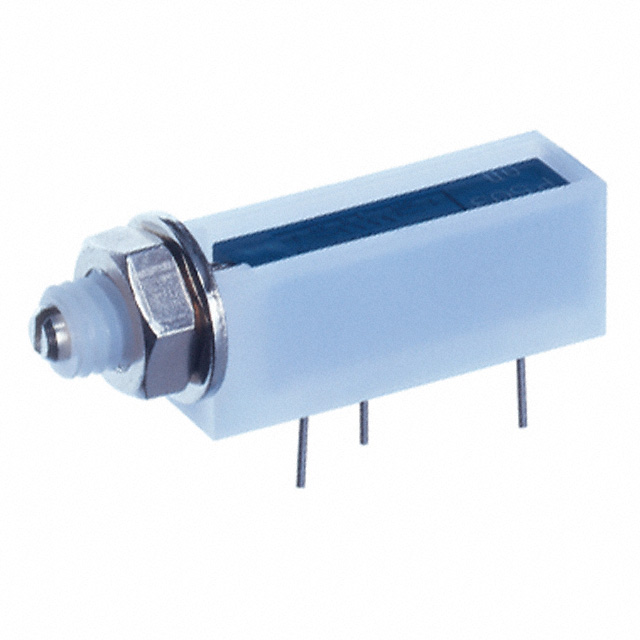

CT20EP Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 10K OHM 0.5W PC PIN SIDE

Part	Resistance	Temperature Coefficient	Tolerance	Mounting Type	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Turns	Power (Watts)	Power (Watts)	Adjustment Type	Resistive Material
Nidec Components Corporation CT-20EPB103	10000 Ohms	100 ppm/°C	10 %	Panel Mount Through Hole	PC Pins	0.276 in	0.35 in	7 mm	8.9 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP102	1000 Ohms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EPB102	1000 Ohms	100 ppm/°C	10 %	Panel Mount Through Hole	PC Pins	0.276 in	0.35 in	7 mm	8.9 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP502	5 kOhms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP101	100 Ohms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EPB503	50000 Ohms	100 ppm/°C	10 %	Panel Mount Through Hole	PC Pins	0.276 in	0.35 in	7 mm	8.9 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP203	20 kOhms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP104	100 kOhms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EP503	50000 Ohms	100 ppm/°C	10 %	Through Hole	PC Pins	0.197 "	0.252 in	5 mm	6.4 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
Nidec Components Corporation CT-20EPB202	2 kOhms	100 ppm/°C	10 %	Panel Mount Through Hole	PC Pins	0.276 in	0.35 in	7 mm	8.9 mm	15	0.5 W	0.5 W	Side Adjustment	Cermet
