ADS5482 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC ADC 16BIT PIPELINED 64VQFN
| Part | Supplier Device Package | Input Type | Reference Type | Number of Inputs | Architecture | Number of A/D Converters | Sampling Rate (Per Second) | Mounting Type | Data Interface | Configuration | Ratio - S/H:ADC | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Package / Case | Number of Bits | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog | Power (Typ) @ Conditions | Utilized IC / Part | Input Range | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 64-VQFN (9x9) | Differential | External Internal | 1 | Pipelined | 1 | 105 M | Surface Mount | LVDS - Parallel | S/H-ADC | 1:1 | 85 °C | -40 °C | 3.6 V | 3 V | 64-VFQFN Exposed Pad | 16 | 3.1 V | 3.6 V | 5 V | ||||
Texas Instruments | 64-VQFN (9x9) | Differential | External Internal | 1 | Pipelined | 1 | 105 M | Surface Mount | LVDS - Parallel | S/H-ADC | 1:1 | 85 °C | -40 °C | 3.6 V | 3 V | 64-VFQFN Exposed Pad | 16 | 3.1 V | 3.6 V | 5 V | ||||

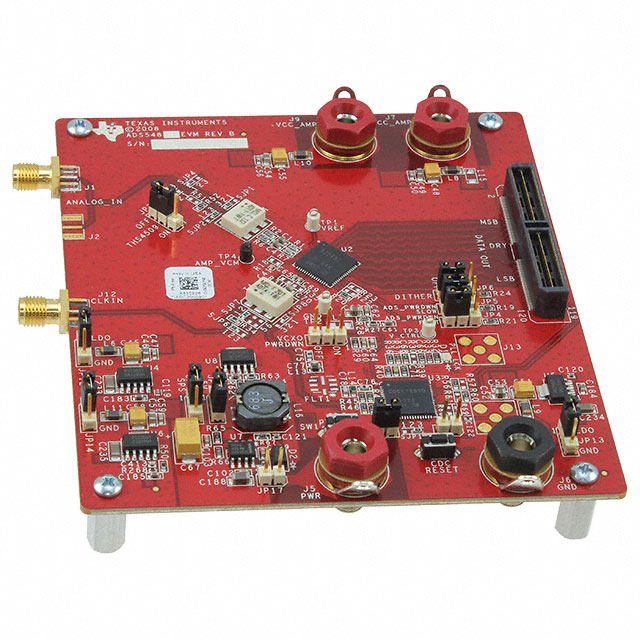

 Texas Instruments | 1 | 105 M | Parallel | 16 | 2.15 W | ADS5482 | 3 Vpp | Board(s) | ||||||||||||||||
Texas Instruments | 64-VQFN (9x9) | Differential | External Internal | 1 | Pipelined | 1 | 105 M | Surface Mount | LVDS - Parallel | S/H-ADC | 1:1 | 85 °C | -40 °C | 3.6 V | 3 V | 64-VFQFN Exposed Pad | 16 | 3.1 V | 3.6 V | 5 V |
