M2019TX Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Approval Agency	Switch Function	Current Rating (Amps)	Features	Actuator Marking	Mounting Type	Color - Actuator/Cap

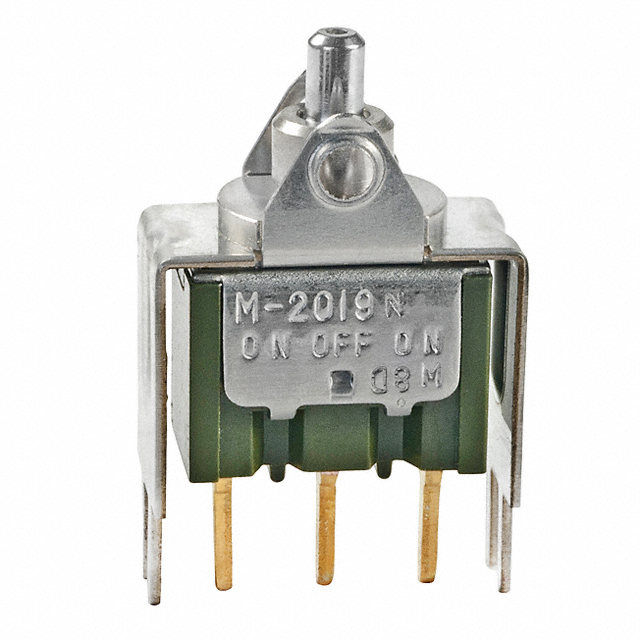

NKK Switches M2019TXG13	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Actuator Arm Cap Required	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	Varies by Cap	Through Hole
NKK Switches M2019TXG13-GB	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Paddle	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	No Marking	Through Hole	White
NKK Switches M2019TXG45-DA	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Concave	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole Vertical	Black

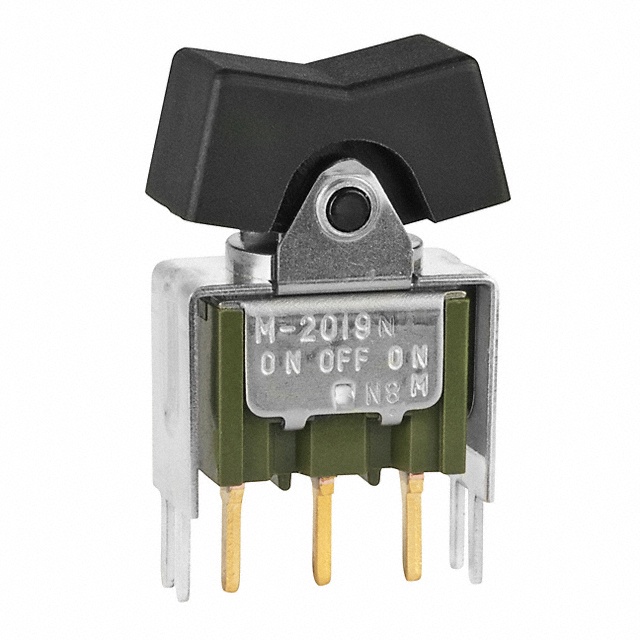

NKK Switches M2019TXG13-DA	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Concave	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	No Marking	Through Hole	Black
NKK Switches M2019TXG13-EH	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Paddle	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	No Marking	Through Hole

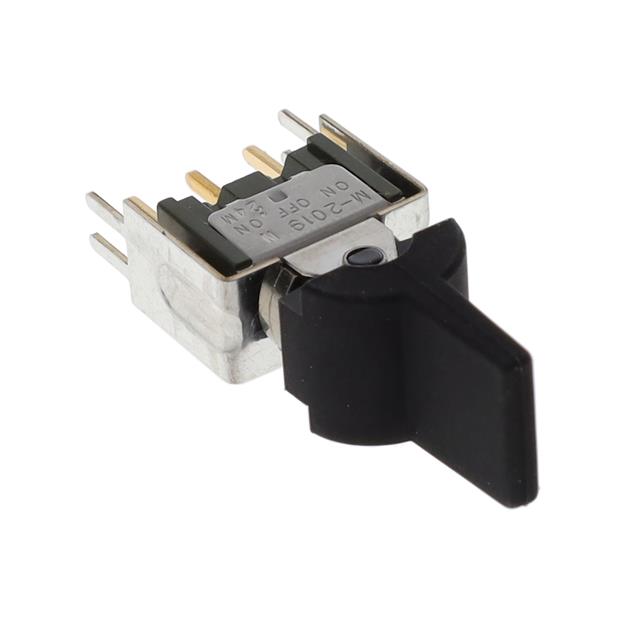

NKK Switches M2019TXG13-GA	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Paddle	CSA UL	On-Off-Mom	0.4 VA		No Marking	Through Hole	Black
NKK Switches M2019TXG45-DC	50000 Cycles	50000 Cycles	28 V	28 V	PC Pin	SPDT	85 °C	-30 ░C	Concave	CSA UL	On-Off-Mom	0.4 VA	Epoxy Sealed Terminals	No Marking	Right Angle Through Hole Vertical	Red
