RFN-1022 Series
Manufacturer: RF Industries
Beta
⌘K
N FEMALE BH; 50 OHMS
| Part | Dielectric Material | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Mounting Type | Mounting Feature | Connector Type | Center Contact Material | Shield Termination | Fastening Type | Frequency - Max [Max] | Number of Ports | Housing Color | Cable Group | Contact Termination | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

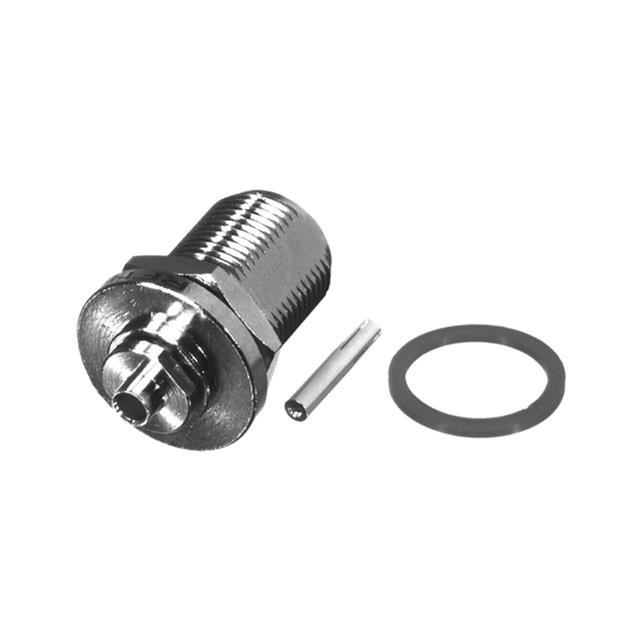

 RF Industries | Polytetrafluoroethylene (PTFE) | Gold | Nickel | -65 ░C | 165 °C | Brass | 1000 VDC | Panel Mount | Bulkhead - Front Side Nut | Female Socket Jack | Phosphor Bronze | Crimp | Threaded | 11 GHz | 1 | Silver | RG-405 (.085" Semi Rigid) Belden 1671A | Crimp | 50 Ohms | N Type |

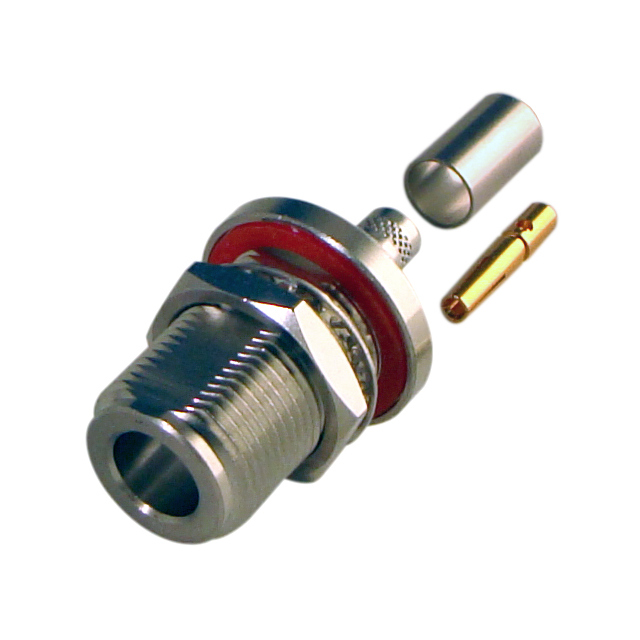

 RF Industries | Polytetrafluoroethylene (PTFE) | Gold | White Bronze | -65 ░C | 85 °C | Brass | 1000 VDC | Panel Mount | Bulkhead - Front Side Nut | Female Socket Jack | Phosphor Bronze | Crimp | Threaded | 11 GHz | 1 | Silver | Belden 9258 LMR-240 RG-8X | Crimp | 50 Ohms | N Type |
