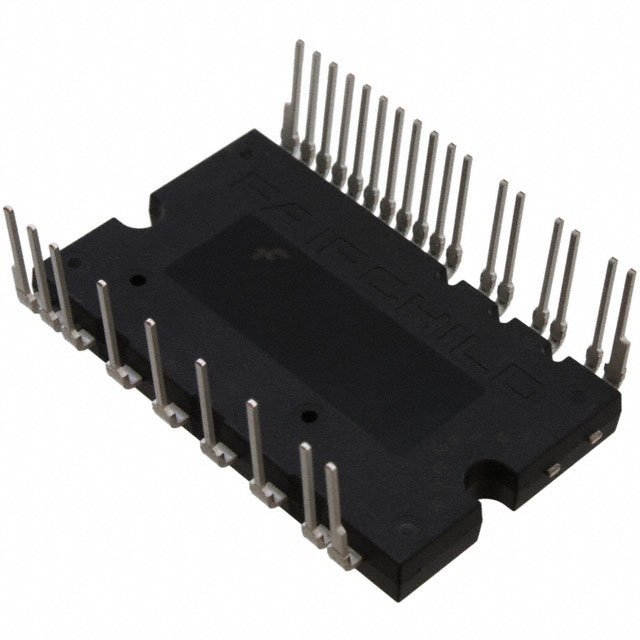

Intelligent Power Module (IPM), 600V, 15A
Key Features
• 600V, 15A 3-phase IGBT inverter including control ICs for gate drive and protections
• Easy PCB layout thanks to the built-in bootstrap diodes and the dedicated Vs pins
• Three separate open-emitter pins from low side IGBTs for three leg current sensing
• Single-grounded power supply with bootstrap operations
• Built-in thermistor for temperature monitoring
• Isolation rating of 2000Vrms/min.
Description
AI
FNA41560T2 is a power module for motion control, providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors. These mod-ules integrate optimized gate drive of the built-in IGBTsto minimize EMI and losses, while also providing multi-ple on-module protection features including under-volt-age lockouts, over-current shutdown, thermal monitoring of drive IC, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and trans-lates the incoming logic-level gate inputs to the high-volt-age, high-current drive signals required to properly drive the module's internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
