8132 Series
Manufacturer: Belden Inc.
Beta
⌘K

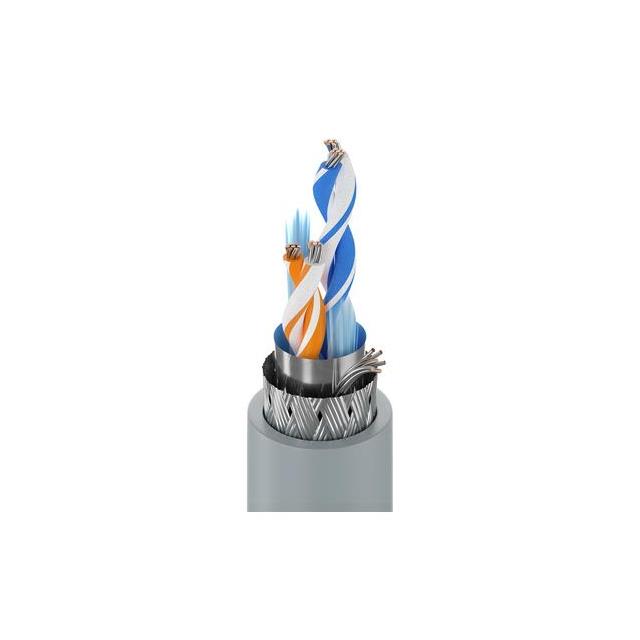

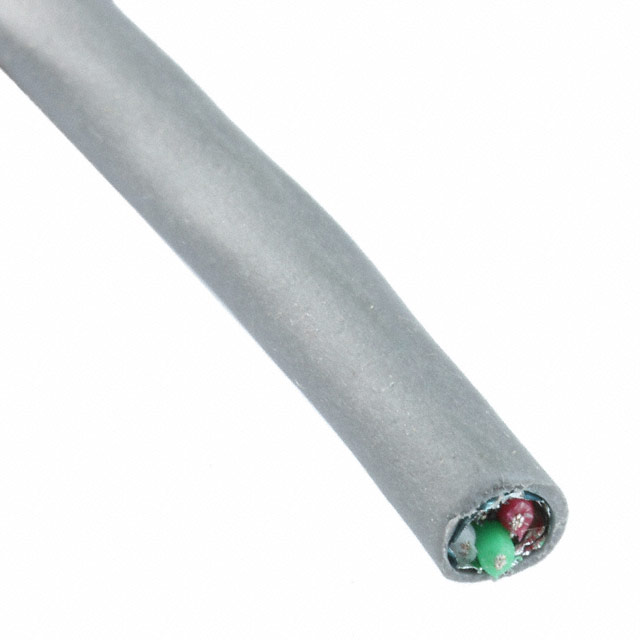

MULTI-PAIR 4COND 28AWG CHROME
| Part | Shield Coverage | Shield Material | Wire Gauge | Length [x] | Length [x] | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Material | Shield Type | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Ratings | Features | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 28 AWG | 100 ft | 30.5 m | Computer | 80 °C | -30 ░C | 5.59 mm | 0.22 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | Chrome | Foam Polyethylene (FPE) | 7 | 36 AWG | Multi-Pair | UL Style 2919 | Drain Wire | 4 | 0.035 in | 0.889 mm | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 28 AWG | Computer | 80 °C | -30 ░C | 5.59 mm | 0.22 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | Chrome | Foam Polyethylene (FPE) | 7 | 36 AWG | Multi-Pair | UL Style 2919 | Drain Wire | 4 | 0.035 in | 0.889 mm | ||||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 28 AWG | Computer | 80 °C | -30 ░C | 5.59 mm | 0.22 in | Poly-Vinyl Chloride (PVC) | Copper Tinned | Braid Foil | Chrome | Foam Polyethylene (FPE) | 7 | 36 AWG | Multi-Pair | UL Style 2919 | Drain Wire | 4 | 0.035 in | 0.889 mm | 152.4 m | 500 ft |
