M80-405 Series

Catalog

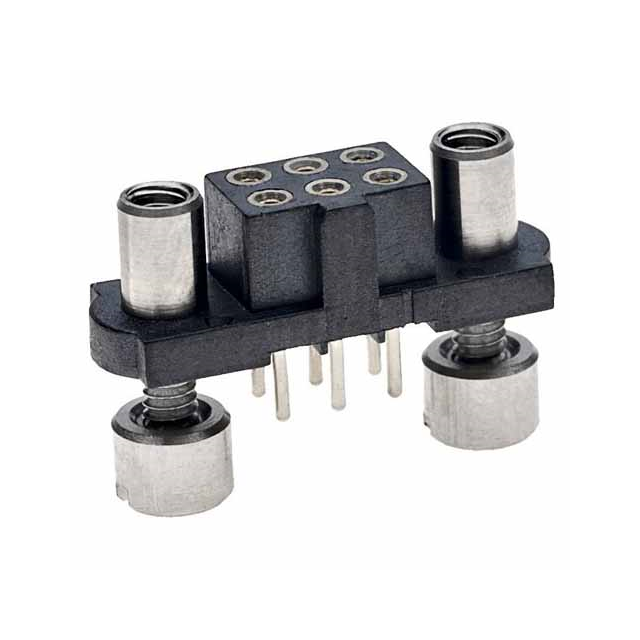

CONN, RCPT, 6POS, 2ROW, 2MM ROHS COMPLIANT: YES

Part	Insulation Material	Contact Shape	Applications	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post	Number of Positions	Termination	Voltage Rating	Connector Type	Mounting Type	Insulation Height	Insulation Height	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Style	Mated Stacking Heights	Features	Contact Finish - Post	Material Flammability Rating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions [custom]
Harwin Inc. M80-4050605	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	10 Áin	0.25 çm	0.118 in	3 mm	6	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4052005	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper			0.118 in	3 mm	20	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4050801	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	137.8 Áin	3.5 Ám	0.118 in	3 mm	8	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Tin-Lead	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4053405	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	10 Áin	0.25 çm	0.118 in	3 mm		Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in	34
Harwin Inc. M80-4051042	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	137.8 Áin	3.5 Ám	0.118 in	3 mm	10	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Tin	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4055005	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	10 Áin	0.25 çm	0.118 in	3 mm	50	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4051842	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	137.8 Áin	3.5 Ám	0.118 in	3 mm	18	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Tin	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
Harwin Inc. M80-4051205	Polyphenylene Sulfide (PPS) Glass Filled	Circular	Automotive General Purpose Military	Beryllium Copper	10 Áin	0.25 çm	0.118 in	3 mm	12	Solder	800 V	Receptacle	Through Hole	5.17 mm	0.204 "	Gold	-55 C	125 °C	Black	Female Socket	12 Áin	0.3 Ám	All	Board to Board Cable	7.3 mm 7.55 mm	Jackscrews Mating Flange Mounting Flange Polarizing Key	Gold	UL94 V-0	2	0.079 "	2 mm	2 mm	0.079 in
