PUP6004 Series

Catalog

CU 6 4PR 23AWG UTP

Part	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Voltage	Cable Type	Jacket (Insulation) Material	Length	Length	Conductor Material	Conductor Insulation	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Features	Jacket (Insulation) Diameter [diameter]
Panduit Corp PUP6004IG-WLP	Solid	5.72 mm	0.225 "	Gray	8	80 V	Multi-Pair Cat6	Low Smoke Poly-Vinyl Chloride (LSPVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	23 AWG	-20 ░C	90 °C

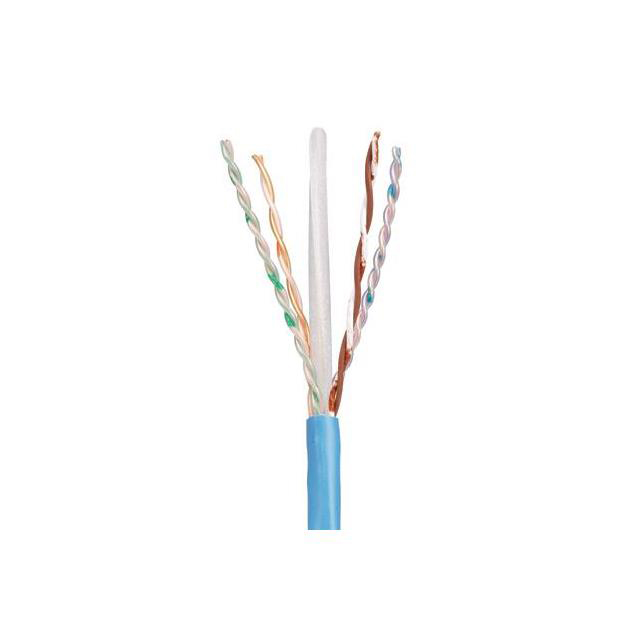

Panduit Corp PUP6004RD-WLP	Solid	5.72 mm	0.225 "	Red	8	80 V	Multi-Pair Cat6	Low Smoke Poly-Vinyl Chloride (LSPVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	23 AWG	-20 ░C	90 °C
Panduit Corp PUP6004VL-WLP	Solid	5.72 mm	0.225 "	Violet	8	80 V	Multi-Pair Cat6	Low Smoke Poly-Vinyl Chloride (LSPVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	23 AWG	-20 ░C	90 °C
Panduit Corp PUP6004OR-W
Panduit Corp PUP6004GR-WLP	Solid	5.72 mm	0.225 "	Green	8	80 V	Multi-Pair Cat6	Low Smoke Poly-Vinyl Chloride (LSPVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	23 AWG	-20 ░C	90 °C

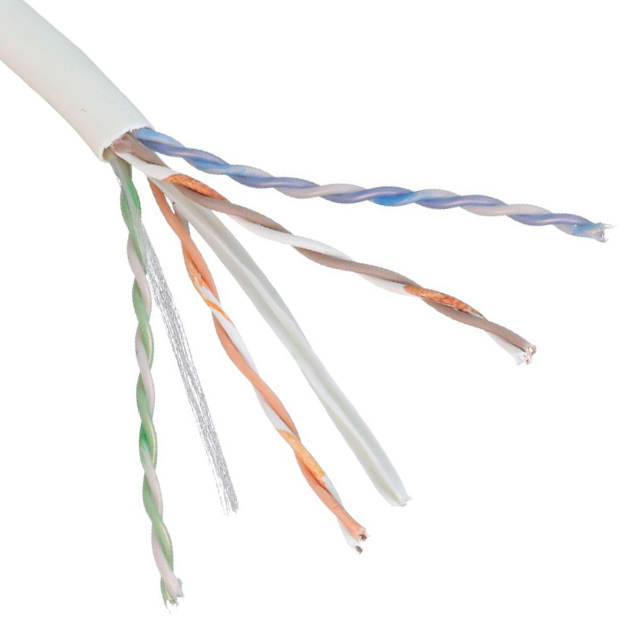

Panduit Corp PUP6004WH-W	Solid	0.233 in		White	8	80 V	Multi-Pair Cat6	Plenum Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP) Polyolefin (PO)	23 AWG	-20 ░C	60 °C	Drain Wire Flame Retardant	5.92 mm

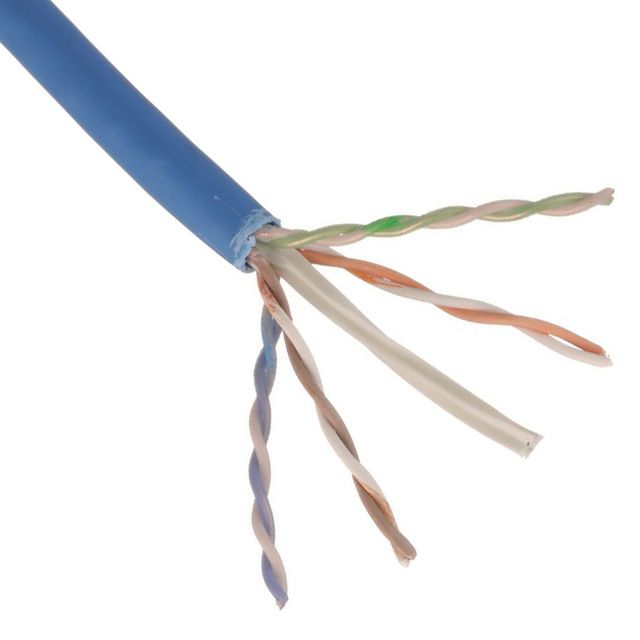

Panduit Corp PUP6004BU-W		0.233 in		Blue	8		Multi-Pair Cat6	Plenum Poly-Vinyl Chloride (PVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP) Polyolefin (PO)	23 AWG	-20 ░C	60 °C	Drain Wire Flame Retardant	5.92 mm
Panduit Corp PUP6004BL-W
Panduit Corp PUP6004BL-WLP	Solid	5.72 mm	0.225 "	Black	8	80 V	Multi-Pair Cat6	Low Smoke Poly-Vinyl Chloride (LSPVC)	304.8 m	1000 ft	Copper Bare	Fluorinated Ethylene-Propylene (FEP)	23 AWG	-20 ░C	90 °C
Panduit Corp PUP6004IG-W
