PX0941 Series

Catalog

CONN RCPT MALE 2POS NICKEL SCREW

Part	Contact Material	Contact Finish - Mating	Termination	Ingress Protection	Color	Features	Cable Opening [Max]	Cable Opening [Min]	Orientation	Current Rating (Amps)	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Fastening Type	Shielding	Connector Type	Number of Positions	Mounting Feature	Voltage Rating	Mounting Type

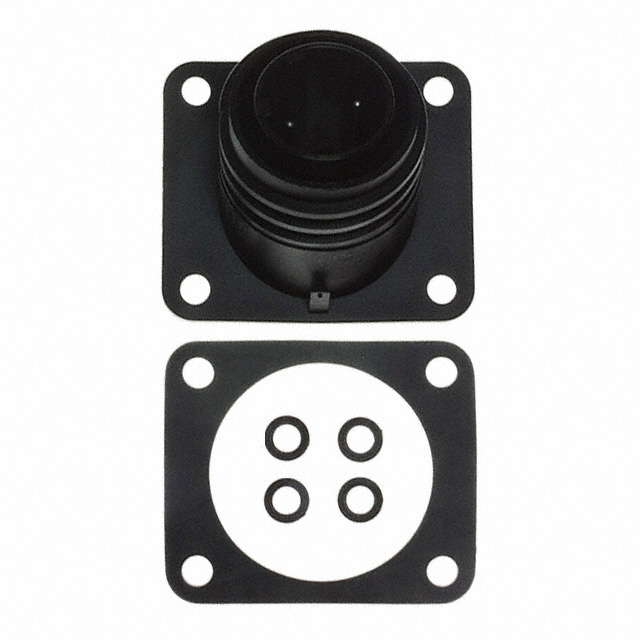

BULGIN LIMITED PX0941/02/P	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Male Pins	2	Flange	600 VAC	Panel Mount

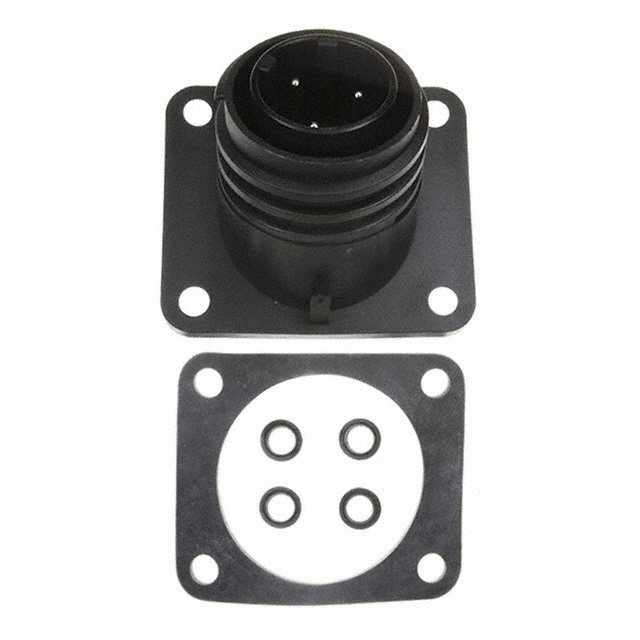

BULGIN LIMITED PX0941/03/P	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Male Pins	3	Flange	600 VAC	Panel Mount

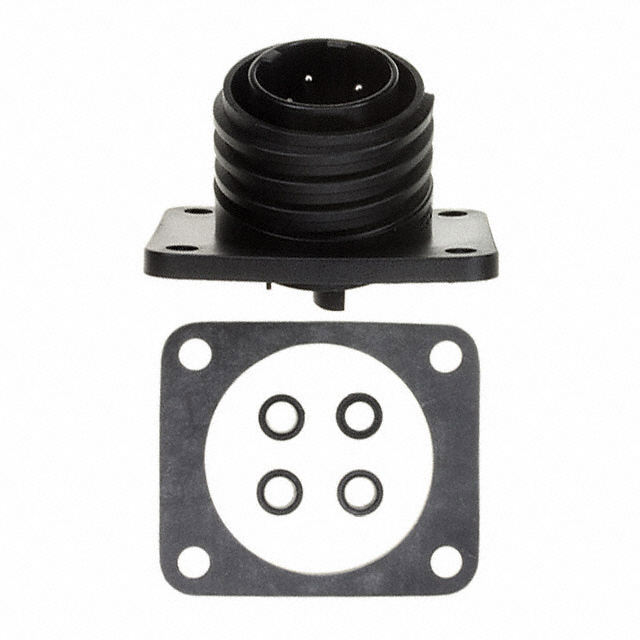

BULGIN LIMITED PX0941/04/P	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Male Pins	4	Flange	600 VAC	Panel Mount

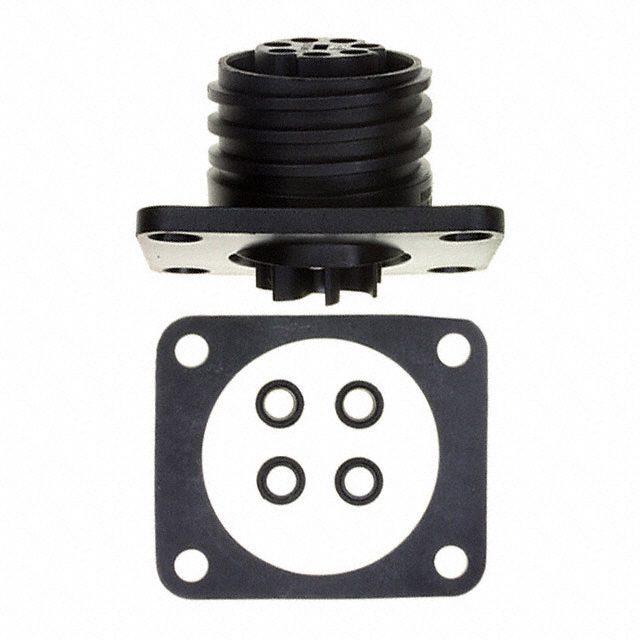

BULGIN LIMITED PX0941/07/S	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Female Sockets	7	Flange	430 VAC/DC	Panel Mount
BULGIN LIMITED PX0941/05/S	Brass	Nickel	Screw	IP68 IP69K	Black	Trailing Neutral UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Female Sockets	5	Flange	600 VAC	Panel Mount
BULGIN LIMITED PX0941/10/S	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	10 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Female Sockets	10	Flange	250 VAC	Panel Mount

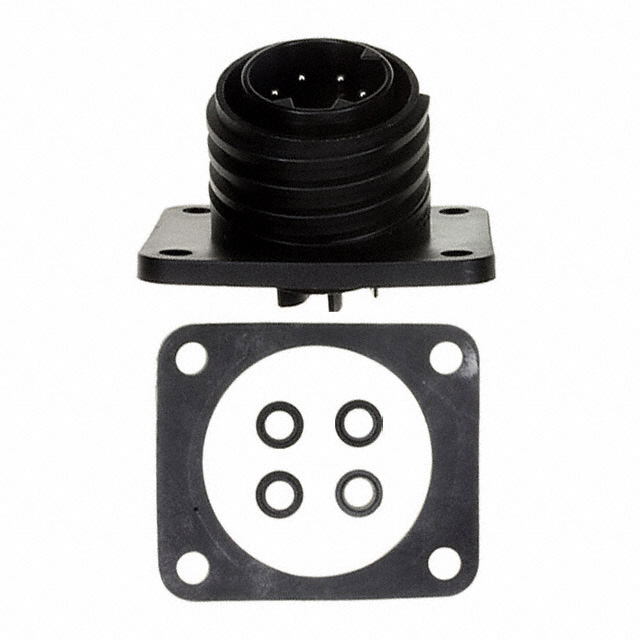

BULGIN LIMITED PX0941/07/P	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Male Pins	7	Flange	430 VAC/DC	Panel Mount

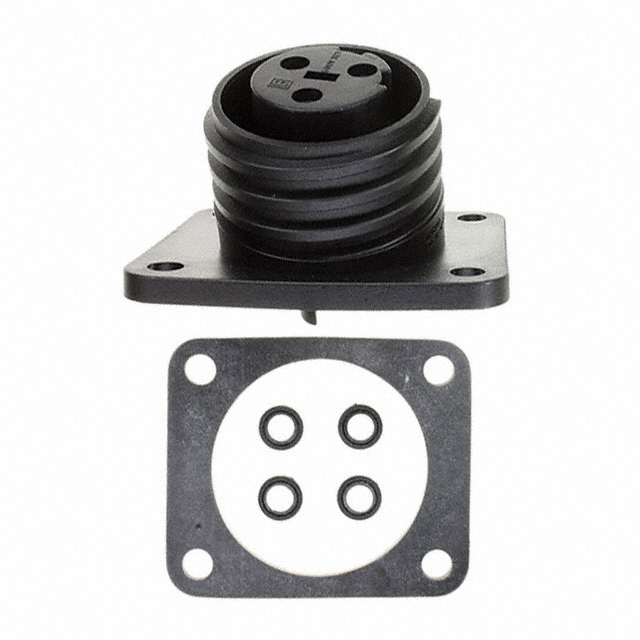

BULGIN LIMITED PX0941/03/S	Brass	Nickel	Screw	IP68 IP69K	Black	UV Resistant	0.512 in 13 mm	0.276 " 7 mm	Keyed	32 A	UL94 V-0	85 °C	-40 C	Plastic	Threaded	Unshielded	Receptacle Female Sockets	3	Flange	600 VAC	Panel Mount
