AFB0824 Series

Catalog

FAN AXIAL 80X15MM 24VDC WIRE

Part	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Fan Type	RPM	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Approval Agency	Bearing Type	Voltage - Rated	Width [y]	Noise	Air Flow	Air Flow	Static Pressure	Static Pressure	Termination	Weight	Weight	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Features	Static Pressure	Ingress Protection

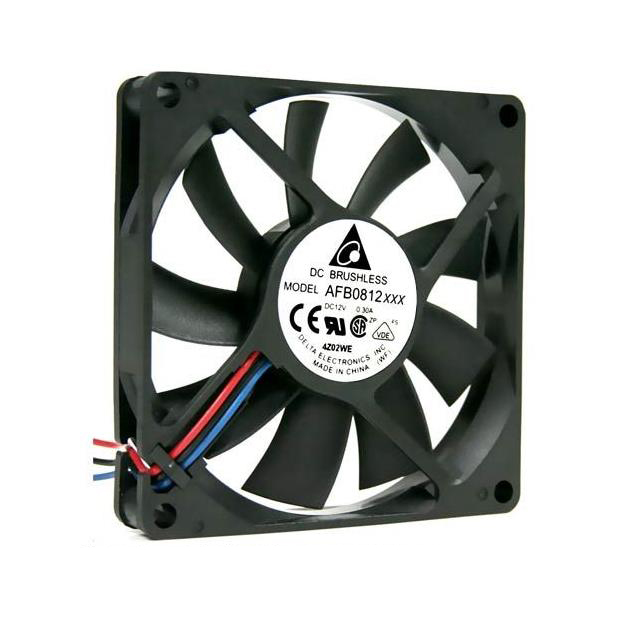

Delta Electronics AFB0824MB	Plastic	27.6 VDC	14	60 mA	Plastic	Tubeaxial	2700 RPM	80 mm	80 mm	1.44 W	CE CSA UL VDE	Ball	24 VDC	15 mm	30.5 dB	0.792 m³/min	28.3 CFM	0.107 in H2O	26.6 Pa	2 Wire Leads	0.128 lb	58.06 g

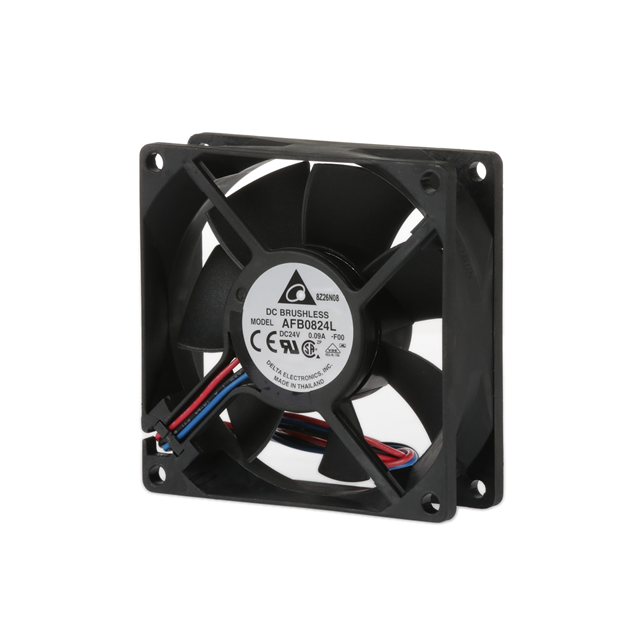

Delta Electronics AFB0824L-F00	Plastic	27.6 VDC	14	50 mA	Plastic	Tubeaxial	2400 RPM	80 mm	80 mm	1.2 W	CE CSA UL VDE	Ball	24 VDC	25.4 mm	25 dB(A)	0.781 m³/min	27.9 CFM		0.102 in H2O	3 Wire Leads	0.176 lb	80 g	70000 Hrs	70 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)	25.5 Pa
Delta Electronics AFB0824M	Plastic	27.6 VDC	14	60 mA	Plastic	Tubeaxial	2700 RPM	80 mm	80 mm	1.44 W	CE CSA UL VDE	Ball	24 VDC	25.4 mm	28 dB	0.879 m³/min	31.4 CFM	0.129 in H2O	32.1 Pa	2 Wire Leads	0.176 lb	80 g	70000 Hrs	70 °C	-10 °C
Delta Electronics AFB0824SH-F00	Plastic	26 VDC	14 VDC		Plastic	Tubeaxial	4000 RPM	80 mm	80 mm	3.84 W	CE CSA UL VDE	Ball	24 VDC	25.4 mm	40 dB(A)	1.3 m³/min	46.6 CFM	0.267 in H2O	66.5 Pa	3 Wire Leads	0.176 lb	80 g	70000 Hrs	60 °C	-10 °C	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0824GHE	Plastic	26.4 VDC	14 VDC	650 mA	Plastic	Tubeaxial	6800 RPM	80 mm	80 mm	15.6 W	CE CSA UL VDE	Ball	24 VDC	38 mm	54 dB	2.77 m³/min	99 CFM	1.006 in H2O	250.6 Pa	2 Wire Leads	0.344 lb	156.04 g	70000 Hrs	70 °C	-10 °C
Delta Electronics AFB0824HH-T500	Plastic	27.6 VDC	14	0.09 A	Plastic	Tubeaxial	3250 RPM	80 mm	80 mm	2.16 W	CE CSA UL VDE	Ball	24 VDC	25.4 mm	34 dB(A)	1.05 m³/min	37.4 CFM	0.181 in H2O	45.1 Pa	2 Wire Leads	0.176 lb	80 g	70000 Hrs	70 °C	-10 °C			IP55 - Dust Protected Water Resistant
Delta Electronics AFB0824HB	Plastic	27.6 VDC	14		Plastic	Tubeaxial	3100 RPM	80 mm	80 mm	1.92 W	CE CSA UL VDE	Ball	24 VDC	15 mm	34 dB(A)	0.941 mł/min	33.6 CFM	0.138 in H2O	34.3 Pa	2 Wire Leads	0.128 lb	58.06 g
Delta Electronics AFB0824GHE-R00	Plastic	26.4 VDC	14 VDC	650 mA	Plastic	Tubeaxial	6800 RPM	80 mm	80 mm	15.6 W	CE CSA UL VDE	Ball	24 VDC	38 mm	54 dB	2.77 m³/min	99 CFM	1.006 in H2O	250.6 Pa	3 Wire Leads	0.344 lb	156.04 g	70000 Hrs	70 °C	-10 °C	Locked Rotor Sensor
Delta Electronics AFB0824VH-R00	Plastic	27.6 VDC	14	140 mA	Plastic	Tubeaxial	3600 RPM	80 mm	80 mm	3.36 W	CE CSA UL VDE	Ball	24 VDC	25.4 mm	38 dB(A)	1.18 m³/min	42 CFM	0.217 in H2O	54.1 Pa	3 Wire Leads	0.176 lb	80 g	70000 Hrs	70 °C	-10 °C	Locked Rotor Sensor

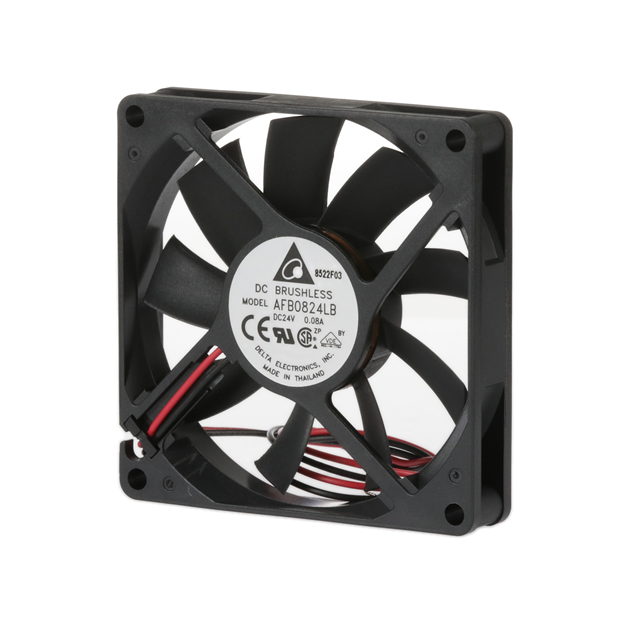

Delta Electronics AFB0824LB	Plastic	27.6 VDC	14	50 mA	Plastic	Tubeaxial	2400 RPM	80 mm	80 mm	1.2 W	CE CSA UL VDE	Ball	24 VDC	15 mm	27.5 dB(A)	0.692 m³/min	24.7 CFM	0.087 in H2O	21.7 Pa	2 Wire Leads	0.128 lb	58.06 g	70000 Hrs	70 °C	-10 °C
