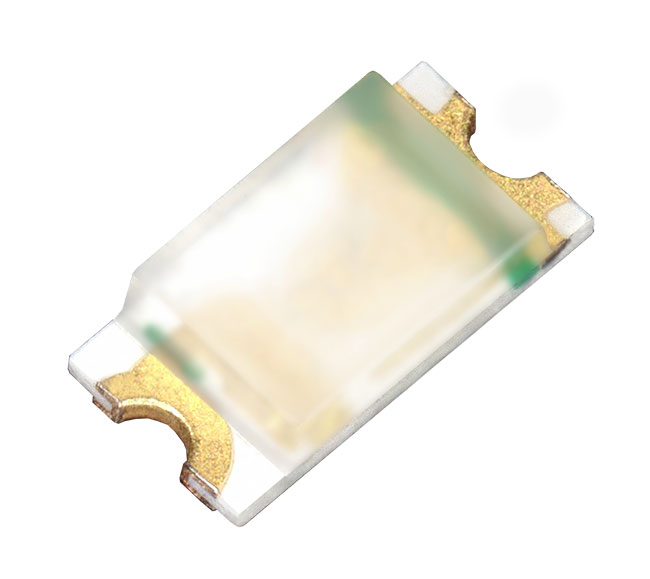

SMLEN3 Series

Industry standard 0603 Size, Thin type, Green Chip LED

Catalog

Industry standard 0603 Size, Thin type, Green Chip LED

Part	Lens Style	Wavelength - Dominant	Height (Max) [z]	Mounting Type	Current - Test	Package / Case	Package / Case	Lens Size [y]	Lens Size [x]	Color	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]	Configuration	Supplier Device Package	Supplier Device Package
Rohm Semiconductor SMLEN3BC8TT86	Rectangle with Flat Top	470 nm	0.4 mm	Surface Mount	5 mA	1608 Metric	0603	0.8 mm	1.2 mm	Blue	40 mcd	1.6 mm	0.8 mm	2.9 V
Rohm Semiconductor SMLEN3EC8TT86	Rectangle with Flat Top		0.4 mm	Surface Mount	5 mA	1608 Metric	0603	0.8 mm	1.2 mm	Green	140 mcd	1.6 mm	0.8 mm	3 V	527 nm	Standard	1608	603

Industry standard 0603 Size, Thin type, Green Chip LED

SML-E1 series is a small, thin surface-mount type chip LED.
