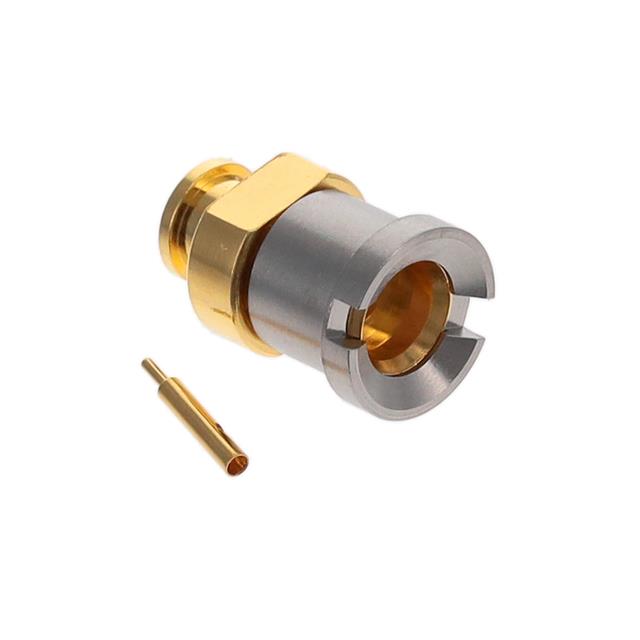

SMP FEMALE FOR RG316&LMR-100A
| Part | Impedance | Shield Termination | Voltage Rating | Mounting Type | Fastening Type | Frequency - Max [Max] | Dielectric Material | Housing Color | Contact Termination | Center Contact Plating | Connector Type | Number of Ports | Mating Cycles | Body Finish | Body Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 50 Ohms | Crimp | 175 VDC | Free Hanging (In-Line) | Snap-On | 6000 MHz | Polytetrafluoroethylene (PTFE) | Gold | Solder | Gold | Female Socket Receptacle | 1 | 500 | Gold | Brass | Beryllium Copper | 125 °C | -40 °C |
