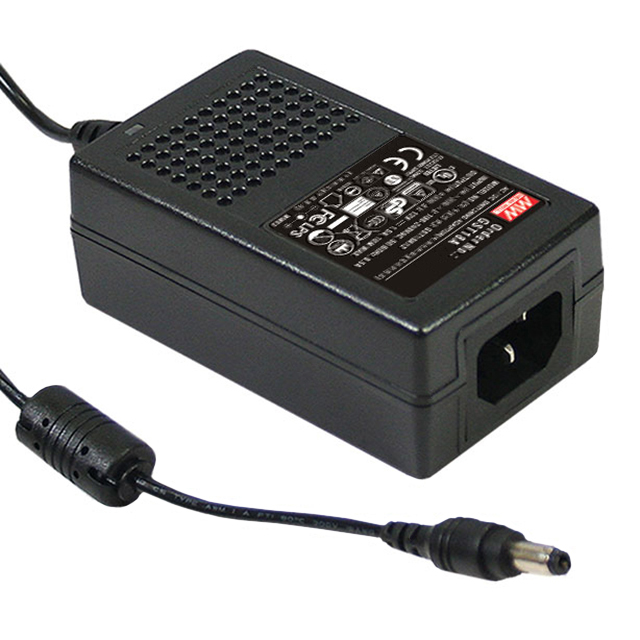

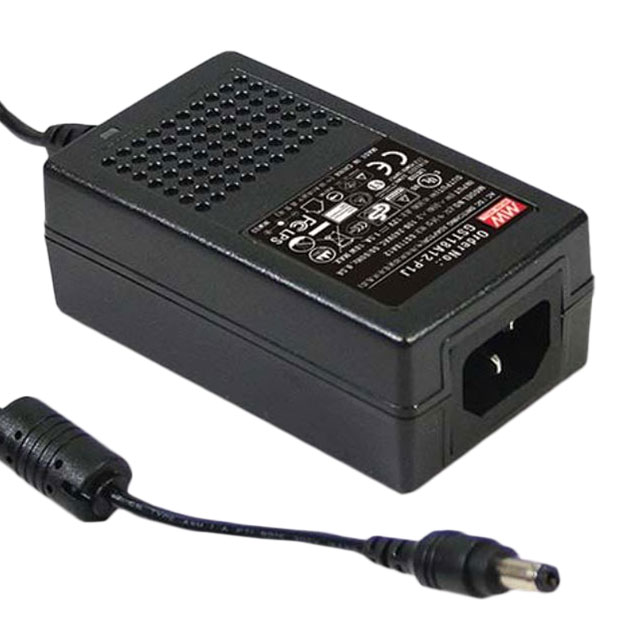

GST18A12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DESKTOP ADAPTER 12V 18W
| Part | Applications | Input Connector | Polarization | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output | Current - Output (Max) [Max] | No Load Power Consumption | Approval Agency | Efficiency | Input Type | Region Utilized | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Form | Output Connector [x] | Output Connector [diameter] | Output Connector | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | IEC 320-C14 | Positive Center | 18 W | -30 ░C | 70 °C | 12 V | 1.5 A | 75 mW | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | Level VI | Cord (Sold Separately) | International | 93 mm | 3.66 in | 36 mm | 1.42 " | 2.13 in | 54 mm | Desktop (Class I) | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 1.2 m | 47.2 in |
 MEAN WELL USA Inc. | ITE (Commercial) | IEC 320-C14 | Positive Center | 18 W | -30 ░C | 70 °C | 12 V | 1.5 A | 75 mW | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | Level VI | Cord (Sold Separately) | International | 93 mm | 3.66 in | 36 mm | 1.42 " | 2.13 in | 54 mm | Desktop (Class I) | 11 mm | 2.5 mm 5.5 mm | Barrel Plug | 1.2 m | 47.2 in |
