ADP51 Series

Catalog

SENSOR 0.87PSIG 0.22" 5V

Part	Applications	Output [Min]	Output [Max]	Port Size	Port Size	Port Size	Features	Operating Pressure	Operating Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Accuracy	Port Style	Termination Style	Mounting Type	Output Type	Package / Case	Maximum Pressure	Maximum Pressure	Pressure Type	Voltage - Supply

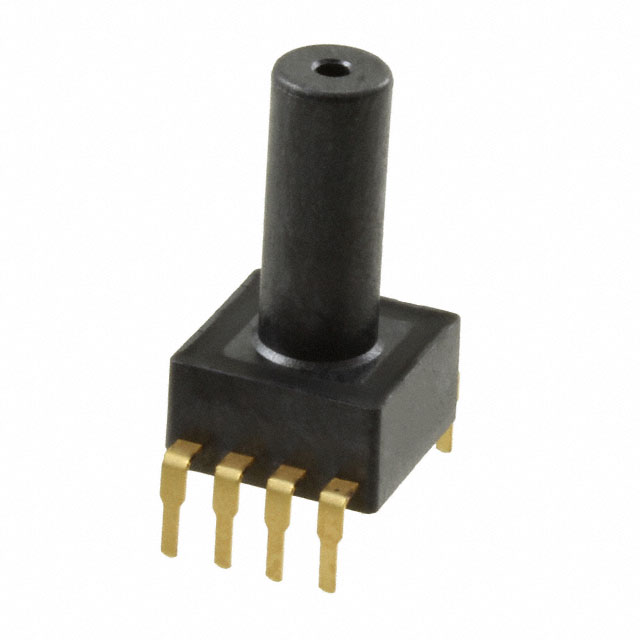

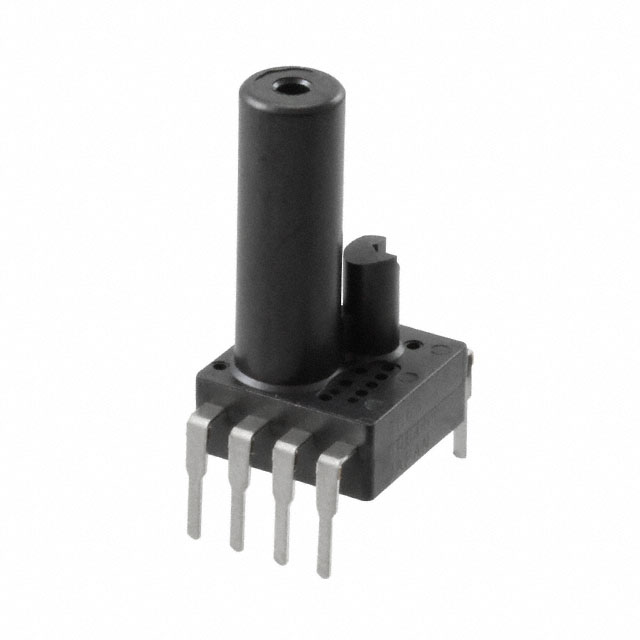

Panasonic Electronic Components ADP51B62	Board Mount	0 mV	5 V	0.22 in	Male Tube	5.45 mm	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	-5 °C	50 °C	1.25 %	Barbless	PC Pin	Through Hole	Analog Voltage	8-DIP Module	1.74 PSI	12 kPa	Vented Gauge
Panasonic Electronic Components ADP51B63	Board Mount	3.5 V	4.5 V	0.22 in	Male Tube	5.45 mm	Amplified Output Temperature Compensated	6 kPa	0.87 PSI	-5 °C	50 °C	2.5 %	Barbless	PC Pin	Through Hole	Analog Voltage	8-DIP Module	1.74 PSI	12 kPa	Vented Gauge
Panasonic Electronic Components ADP51A11	Board Mount	0.3 V	2.7 V	0.12 in	Male Tube	3 mm	Amplified Output Temperature Compensated	40 kPa	5.8 PSI	-5 °C	50 °C	4 %	Barbless	PC Pin	Through Hole	Analog Voltage	6-DIP Module			Vented Gauge	3 V
