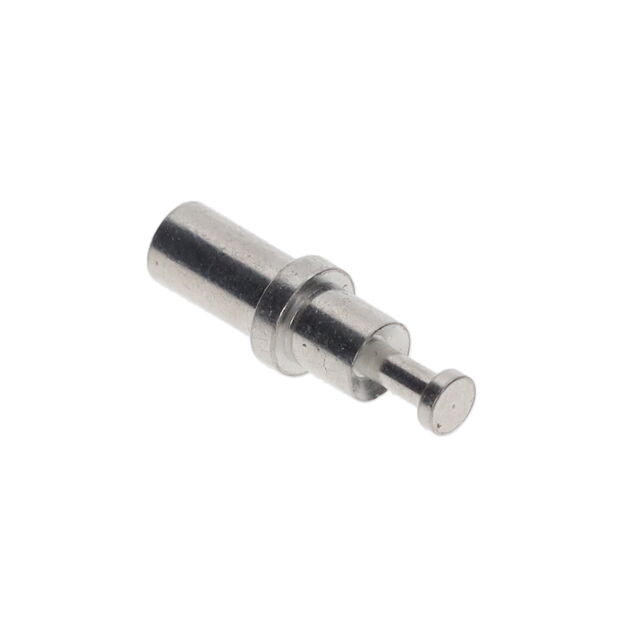

0323-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPT PIN .032-.046".094"

Part	Board Thickness	Board Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Termination
Mill-Max Manufacturing Corp. 0323-2-15-01-34-14-10-0	0.79 mm	0.031 in	-55 C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
Mill-Max Manufacturing Corp. 0323-2-15-15-34-14-10-0	1.57 mm	0.062 "	-55 C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
Mill-Max Manufacturing Corp. 0323-2-15-15-34-27-10-0	1.57 mm	0.062 "	-55 C	125 °C	Beryllium Copper	Gold	0.76 Ám	30 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
Mill-Max Manufacturing Corp. 0323-2-15-80-34-14-10-0	1.57 mm	0.062 "	-55 C	125 °C	Beryllium Copper	Gold	0.25 Ám	10 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
Mill-Max Manufacturing Corp. 0323-2-15-80-34-80-10-0	1.57 mm	0.062 "	-55 C	125 °C	Beryllium Copper	Tin	5.08 Ám	200 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
Mill-Max Manufacturing Corp. 0323-2-15-01-34-27-10-0	1.57 mm	0.062 "	-55 C	125 °C	Beryllium Copper	Gold	0.76 Ám	30 Áin	0.125 in	3.18 mm	1.63 mm	0.064 in	0.2 in	5.08 mm	0.094 in	2.39 mm	9.96 mm	0.392 "	Turret	1.17 mm	0.81 mm	0.046 "	0.032 "	Swage
