HT 3/4 Series

Catalog

SPIRAL WRAP 0.62" X 100' WHITE

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Material	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Length	Length	Wall Thickness	Wall Thickness	Color	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Abrasion Protection	Material Flammability Rating	Diameter - Inside, Expanded [diameter]	Heat Protection	Environment Protection [custom]
MM Newman Corporation HT 3/4 C WH	Chemical Resistant Solvent Resistant	88 °C	-60 °C	Polyethylene (PE)	19.05 mm	0.75 in	100 '	30.48 m	1.65 mm	0.065 in	White	5 in	127 mm	Spiral Wrap	Harness	15.75 mm	0.62 in	Abrasion Resistant
MM Newman Corporation HT 3/4 T	Chemical Resistant Solvent Resistant	260 °C	-268 °C	Polytetrafluoroethylene (PTFE)	19.05 mm	0.75 in	100 '	30.48 m	0.81 mm	0.032 in	Natural		4 in	Spiral Wrap	Harness	17.42 mm	0.686 in	Abrasion Resistant	UL VW-1 UL94 V-0	101.6 mm	Fire Resistant	UV Resistant
MM Newman Corporation HT 3/4 C GR	Chemical Resistant Solvent Resistant	88 °C	-60 °C	Polyethylene (PE)	19.05 mm	0.75 in	100 '	30.48 m	1.65 mm	0.065 in	Green	5 in	127 mm	Spiral Wrap	Harness	15.75 mm	0.62 in	Abrasion Resistant

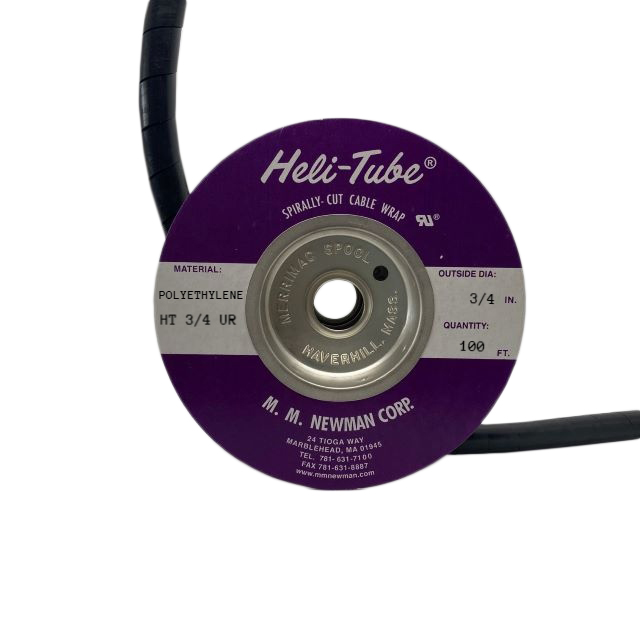

MM Newman Corporation HT 3/4 UR	Chemical Resistant Solvent Resistant	88 °C	-60 °C	Polyethylene (PE)	19.05 mm	0.75 in	100 '	30.48 m	1.65 mm	0.065 in	Black	5 in	127 mm	Spiral Wrap	Harness	15.75 mm	0.62 in	Abrasion Resistant
MM Newman Corporation HT 3/4 N	Chemical Resistant Self Extinguishing Solvent Resistant	121 C	-40 C	Nylon	19.05 mm	0.75 in	100 '	30.48 m	0.81 mm	0.032 in	Natural	5 in	127 mm	Spiral Wrap	Harness	17.42 mm	0.686 in	Abrasion Resistant
MM Newman Corporation HT 3/4 R-B	Chemical Resistant Solvent Resistant	80 °C	-20 ░C	Polyethylene (PE)	19.05 mm	0.75 in	100 '	30.48 m	1.65 mm	0.065 in	Black	5 in	127 mm	Spiral Wrap	Harness	15.75 mm	0.62 in	Abrasion Resistant	UL1441 UL94 V-2		Fire Resistant

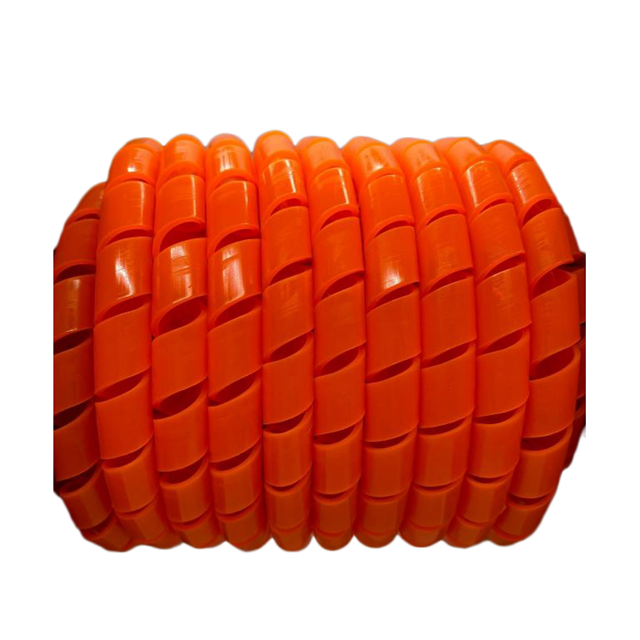

MM Newman Corporation HT 3/4 C OR DG	Chemical Resistant Solvent Resistant	88 °C	-60 °C	Polyethylene (PE)	19.05 mm	0.75 in	100 '	30.48 m	1.65 mm	0.065 in		5 in	127 mm	Spiral Wrap	Harness	15.75 mm	0.62 in	Abrasion Resistant
