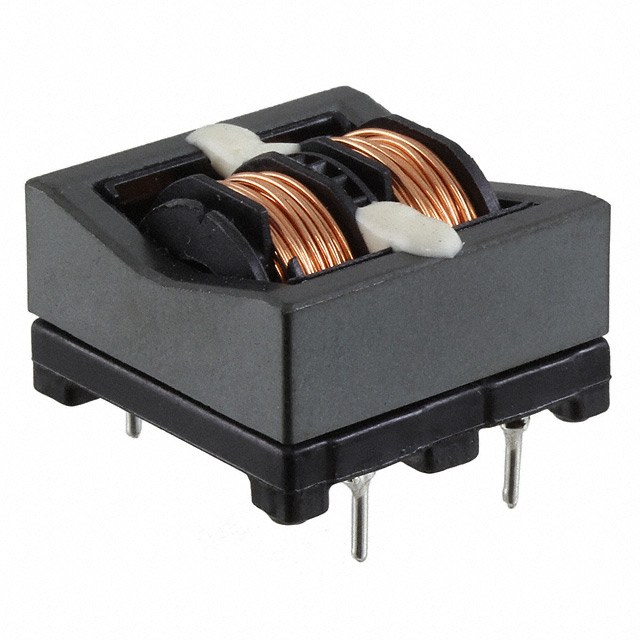

SSR21HS Series

Manufacturer: KEMET

Catalog

V ROHS COMPLIANT: YES

Part	Filter Type	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Package / Case	Current Rating (Max) [Max]	Mounting Type	Inductance @ Frequency	Height (Max) [z]	Height (Max) [z]	Voltage Rating - DC
KEMET SSR21HS-20029	Power Line	100 mOhm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	2 A	Through Hole	2.9 mH	0.571 in	14.5 mm	250 V

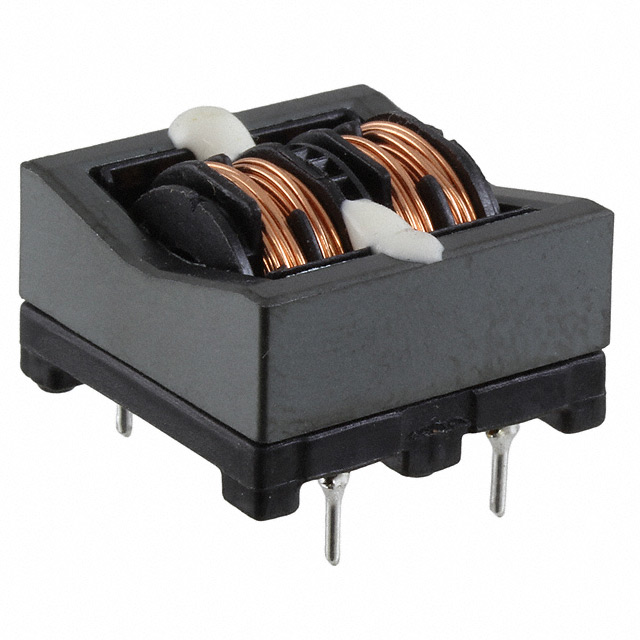

KEMET SSR21HS-12115	Power Line	270 mOhm	0.906 in	23 mm	0.906 in	23 mm	120 °C	-25 °C	2	Vertical 4 PC Pin	1.2 A	Through Hole	11.5 mH	0.571 in	14.5 mm	250 V
