852-90 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER SMD 80POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Material	Number of Positions Loaded	Shrouding	Contact Finish - Post	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Material	Connector Type	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Positions	Termination	Mounting Type	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions [custom]

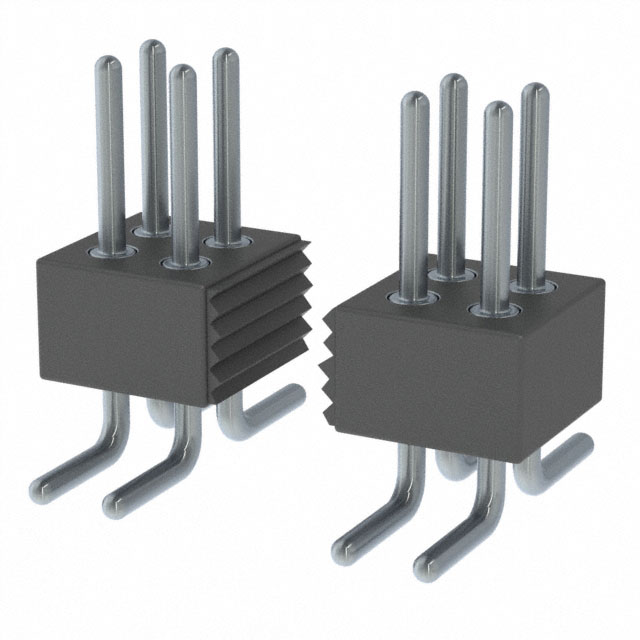

Mill-Max Manufacturing Corp. 852-90-080-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	80	Solder	Surface Mount

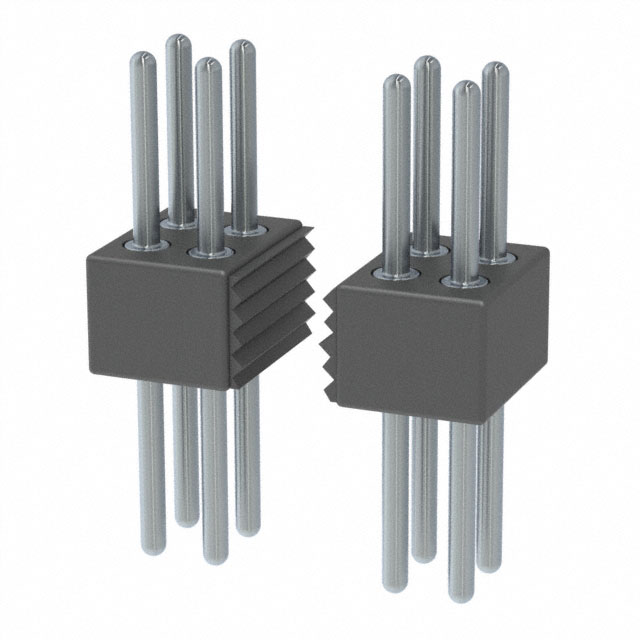

Mill-Max Manufacturing Corp. 852-90-032-10-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black		Solder	Through Hole	0.118 in	3 mm	8.1 mm	0.319 in
Mill-Max Manufacturing Corp. 852-90-068-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	68 positions	Solder	Surface Mount
Mill-Max Manufacturing Corp. 852-90-092-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	92	Solder	Surface Mount
Mill-Max Manufacturing Corp. 852-90-078-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	78	Solder	Surface Mount
Mill-Max Manufacturing Corp. 852-90-080-10-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	80	Solder	Through Hole	0.118 in	3 mm	8.1 mm	0.319 in

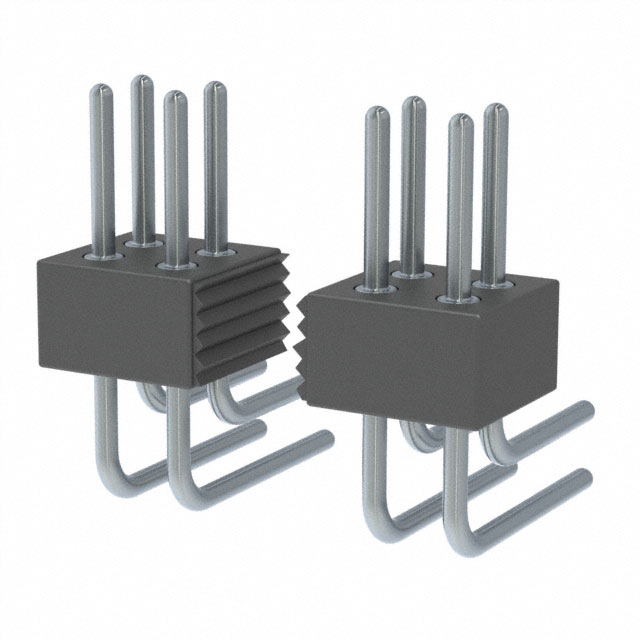

Mill-Max Manufacturing Corp. 852-90-054-20-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	54	Solder	Right Angle Through Hole					3.05 mm	0.12 in	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 852-90-068-10-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	68 positions	Solder	Through Hole	0.118 in	3 mm	8.1 mm	0.319 in
Mill-Max Manufacturing Corp. 852-90-012-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black	12	Solder	Surface Mount
Mill-Max Manufacturing Corp. 852-90-034-30-001000	200 µin	5.08 µm	0.05 in	1.27 mm	Circular	1.27 mm	0.05 in	Tin-Lead	Brass Alloy	All	Unshrouded	Tin-Lead	Male Pin	5.08 µm	200 µin	Push-Pull	Nylon 4/6 Polyamide (PA46)	Header	2	3 mm	0.118 in	Black		Solder	Surface Mount									34
