G630 Series

Catalog

CONN PCI EXP FMALE 64POS 0.039

Part	Material - Insulation	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Mounting Type	Termination	Color	Number of Positions	Number of Rows [custom]	Gender	Contact Finish	Card Type	Read Out	Contact Material	Flange Feature	Flange Feature	Flange Feature	Contact Finish Thickness	Features
Amphenol ICC (FCI) G630H641621EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	0.38 µm	15 µin	1.57 mm	0.062 in	Surface Mount	Solder	Black	64	2	Female	Gold	PCI Express™	Dual	Copper Alloy

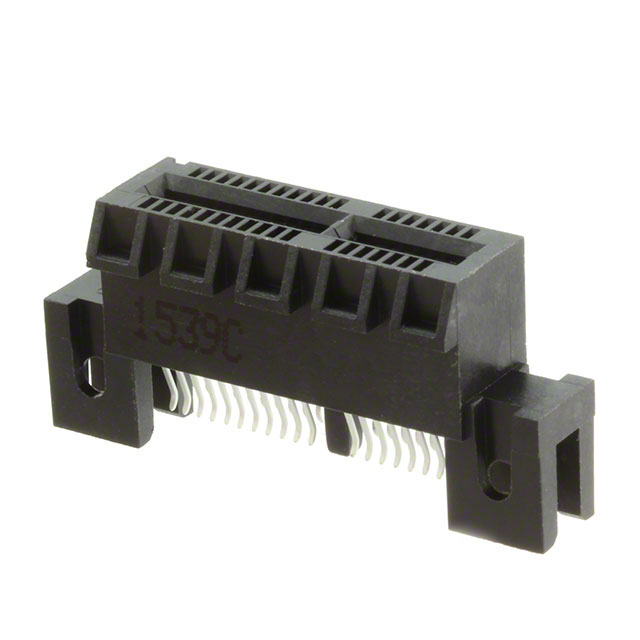

Amphenol ICC (FCI) G630H3602247EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in			1.57 mm	0.062 in	Board Edge Straddle Mount	Solder	Black	36	2	Female	Gold	PCI Express™	Dual	Copper Alloy	Straddle Mount Opening Unthreaded	2 mm	0.079 "	Flash	Card Extender Locking Ramp
Amphenol ICC (FCI) G630H9812248EU	Polyamide (PA9T) Nylon 9T	1 mm	0.039 in	0.38 µm	15 µin	1.57 mm	0.062 in	Board Edge Straddle Mount	Solder	Black	98	2	Female	Gold	PCI Express™	Dual	Copper Alloy	Straddle Mount Opening Unthreaded	2 mm	0.079 "		Card Extender Locking Ramp
