R22306 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

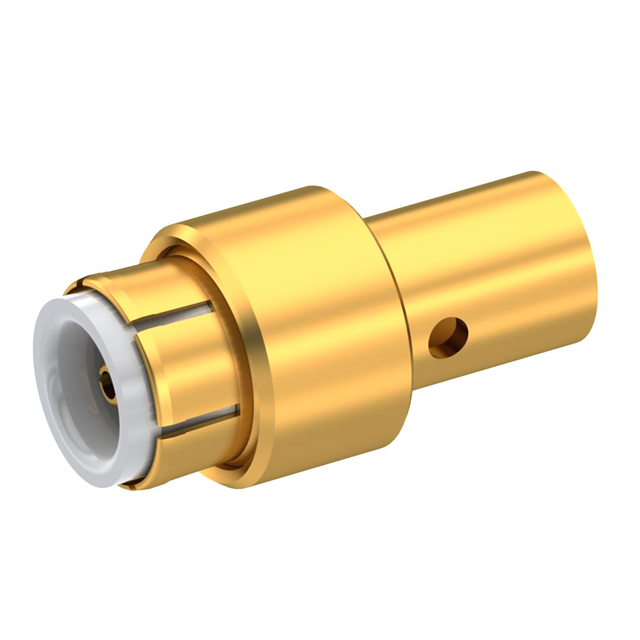

MMBX / STRAIGHT PLUG SOLDER TYPE
| Part | Center Contact Plating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Voltage Rating | Body Material | Connector Style | Impedance | Shield Termination | Frequency - Max [Max] | Housing Color | Connector Type | Mounting Type | Center Contact Material | Fastening Type | Contact Termination | Number of Ports | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Gold | 155 C | -55 C | Polytetrafluoroethylene (PTFE) | 250 V | Brass | MMBX | 50 Ohms | Solder | 12.4 GHz | Gold | Plug Male Pin | Free Hanging (In-Line) | Beryllium Copper | Snap-On | Solder | 1 | RG-405 (.085" Semi Rigid) |
