HDSP-K2 Series

Catalog

RED 105MW 2BIT COMMON ANODE 0.56 DIP-18 LED SEGMENT DISPLAYS ROHS

Part	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Power Dissipation (Max) [Max]	Current - Test	Number of Characters	Millicandela Rating	Color	Display Type	Package / Case	Package / Case	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]

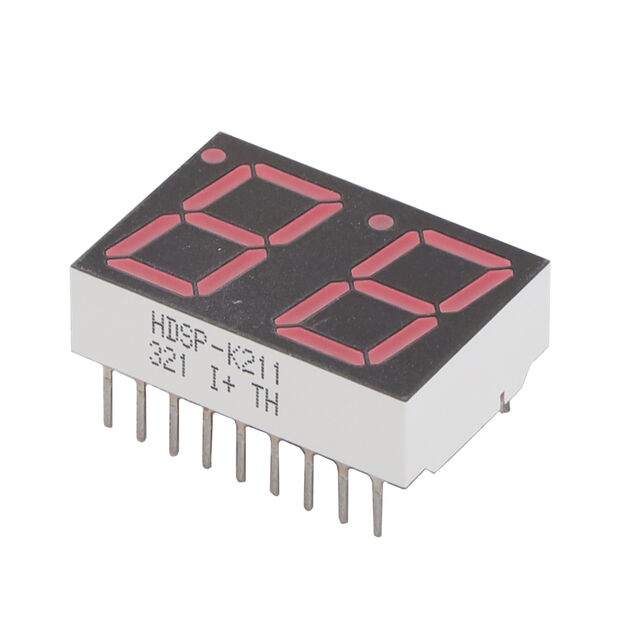

Broadcom Limited HDSP-K211	Common Anode	0.56 in	14.22 mm	635 nm	2 V	105 mW	20 mA	2	2.8 mcd	Red	7-Segment	15.24 mm	0.6 in	18-DIP	0.315 "	0.99 in	25.15 mm	17.02 mm	0.67 in	8 mm
Broadcom Limited HDSP-K213-GH000	Common Cathode	0.56 in	14.22 mm	635 nm	2 V	105 mW	20 mA	2	2.8 mcd	Red	7-Segment	15.24 mm	0.6 in	18-DIP	0.315 "	0.99 in	25.15 mm	17.02 mm	0.67 in	8 mm
Broadcom Limited HDSP-K213	Common Cathode	0.56 in	14.22 mm	635 nm	2 V	105 mW	20 mA	2	2.8 mcd	Red	7-Segment	15.24 mm	0.6 in	18-DIP	0.315 "	0.99 in	25.15 mm	17.02 mm	0.67 in	8 mm
