171574 Series

Impact 100 Ohm 4-Pair Right-Angle Orthogonal Direct Header, Bottom Guided, with Outrigger, 8 Column, 32 Differential Pair, 270˚Mate Position, Pin Length 5.50mm, Plated Through-Hole Dimension 0.46mm, Lead Free

Manufacturer: Molex

Catalog

Part	Mounting Type	Connector Style	Contact Finish	Color	Contact Finish Thickness	Contact Finish Thickness	Contact Layout, Typical	Voltage Rating	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Number of Columns	Features	Material Flammability Rating	Number of Positions	Number of Rows

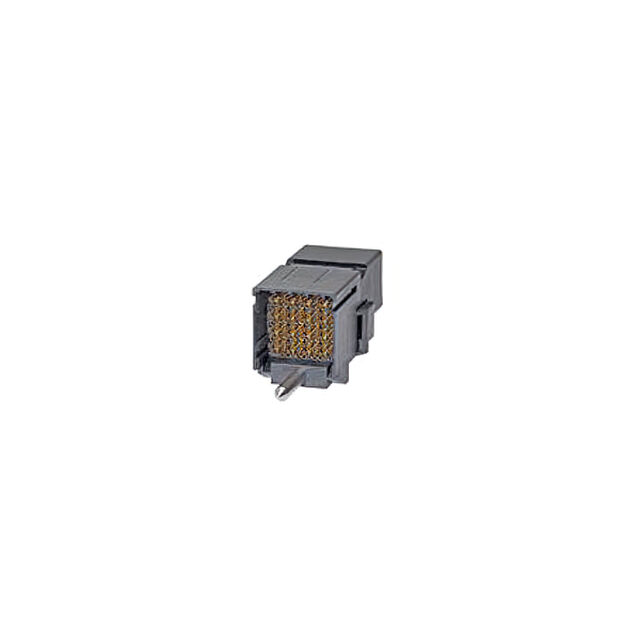

Molex 1715749804	Board Edge Right Angle Through Hole	Guide Bottom Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8	Board Guide	UL94 V-0	96	12
Molex 1715741817	Board Edge Right Angle Through Hole	Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8		UL94 V-0	96	12
Molex 1715749838	Board Edge Right Angle Through Hole	Guide Bottom Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8	Board Guide	UL94 V-0	96	12
Molex 1715741815	Board Edge Right Angle Through Hole	Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8		UL94 V-0	96	12
Molex 1715741818	Board Edge Right Angle Through Hole	Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8		UL94 V-0	96	12

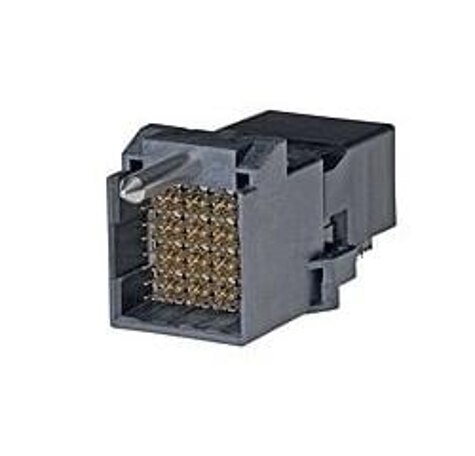

Molex 1715747808	Board Edge Right Angle Through Hole	Guide Top Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8	Board Guide	UL94 V-0	96	12
Molex 1715747805	Board Edge Right Angle Through Hole	Guide Top Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8	Board Guide	UL94 V-0	96	12
Molex 1715749807	Board Edge Right Angle Through Hole	Guide Bottom Impact	Gold	Black	0.76 Ám	30 Áin	32 Differential Pairs	30 VDC	All	85 °C	-55 °C	Press-Fit	Header Male Pins	8	Board Guide	UL94 V-0	96	12
