DRV8935 Series
Manufacturer: Texas Instruments
Beta
⌘K
33V, 2.5A QUAD INDEPENDENT HALF BRIDGE DRIVERS WITH CURRENT REGULATION
| Part | Interface | Rds On (Typ) | Supplier Device Package | Output Configuration | Features | Package / Case | Fault Protection | Voltage - Load [Max] | Voltage - Load [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output / Channel | Voltage - Supply [Max] | Voltage - Supply [Min] | Technology | Applications | Load Type | Current - Peak Output | Mounting Type | Supplied Contents | Type | Embedded | Primary Attributes | Utilized IC / Part | Secondary Attributes | Contents | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Analog Logic PWM | 200 mOhm 200 mOhm | 24-VQFN (4x4) | Half Bridge (4) | Charge Pump | 24-VFQFN Exposed Pad | Over Current Over Temperature Short Circuit UVLO | 33 V | 4.5 V | 150 °C | -40 °C | 2.5 A | 33 V | 4.5 V | Power MOSFET | DC Motors General Purpose Solenoids Stepper Motors | Capacitive Inductive Resistive | 2.5 A | Surface Mount | |||||||||

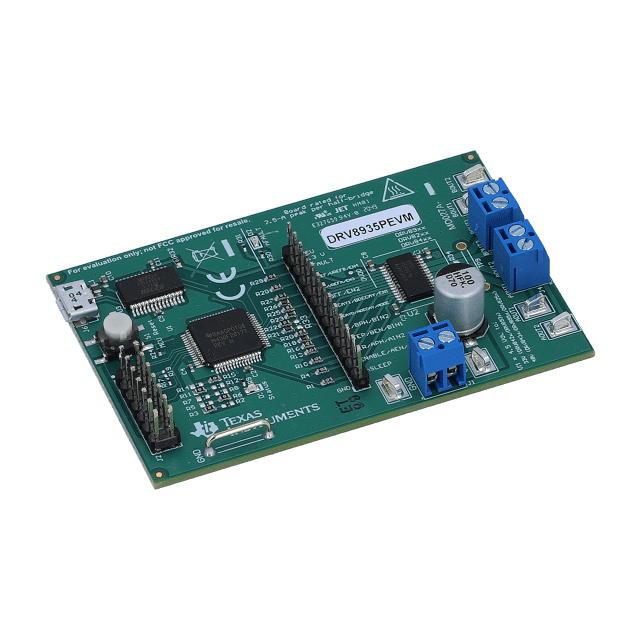

 Texas Instruments | Board(s) | Power Management | Yes MCU | Motors (Stepper) | DRV8935 | Graphical User Interface (GUI) USB Interface(s) | Board(s) | |||||||||||||||||||||
 Texas Instruments | Analog Logic PWM | 200 mOhm 200 mOhm | 28-HTSSOP | Half Bridge (4) | Charge Pump | 28-PowerTSSOP | Over Current Over Temperature Short Circuit UVLO | 33 V | 4.5 V | 150 °C | -40 °C | 2.5 A | 33 V | 4.5 V | Power MOSFET | DC Motors General Purpose Solenoids Stepper Motors | Capacitive Inductive Resistive | 2.5 A | Surface Mount | 4.4 mm | 0.173 " |
